Engine Rebuild Cam Bearings: Complete Installation Workflow Using M20060-03 Kit

Cam bearing installation is the moment of truth in any engine rebuild. Get it right, and your engine will last 500,000+ miles. Get it wrong, and you have a $4,000 block repair. The M20060-03 Cam Bearing Driver & Puller Kit removes all guesswork—complete workflow, pro tips, quality checks, and block protection inside.

The Bearing Installation Challenge: Pressure, Precision, Position

Every cam bearing installation must balance three critical factors:

• Pressure: Enough force to seat the bearing fully without damaging bore or bearing
• Precision: Bearing must be perfectly centered and square to bore
• Position: Each bearing must seat to exact OEM depth

The M20060-03 kit controls all three by using precision drivers and universal adapters that pilot on the bearing bore itself.

Complete Cam Bearing Installation Sequence

1. Inspect block thoroughly – Dial bore for runout, check for cracks, verify bore diameter.
2. Clean all bearing bores – Solvent wash, compressed air dry, wipe with clean cloth.
3. Stage bearings in order – Lay out all cam bearings by position (front to rear).
4. Select M20060-03 driver – Match driver size to bearing bore diameter.
5. Apply assembly lube – Light coat on outer bearing diameter only.
6. Place bearing in bore – Hand-position, ensuring no debris underneath.
7. Install driver sleeve – Center driver over bearing bore.
8. Press bearing home – Steady, even pressure until depth stop engages.
9. Verify installation – Check bearing is flush, flush, square to bore face.
10. Repeat for all positions – Follow OEM sequence; never skip a bearing.

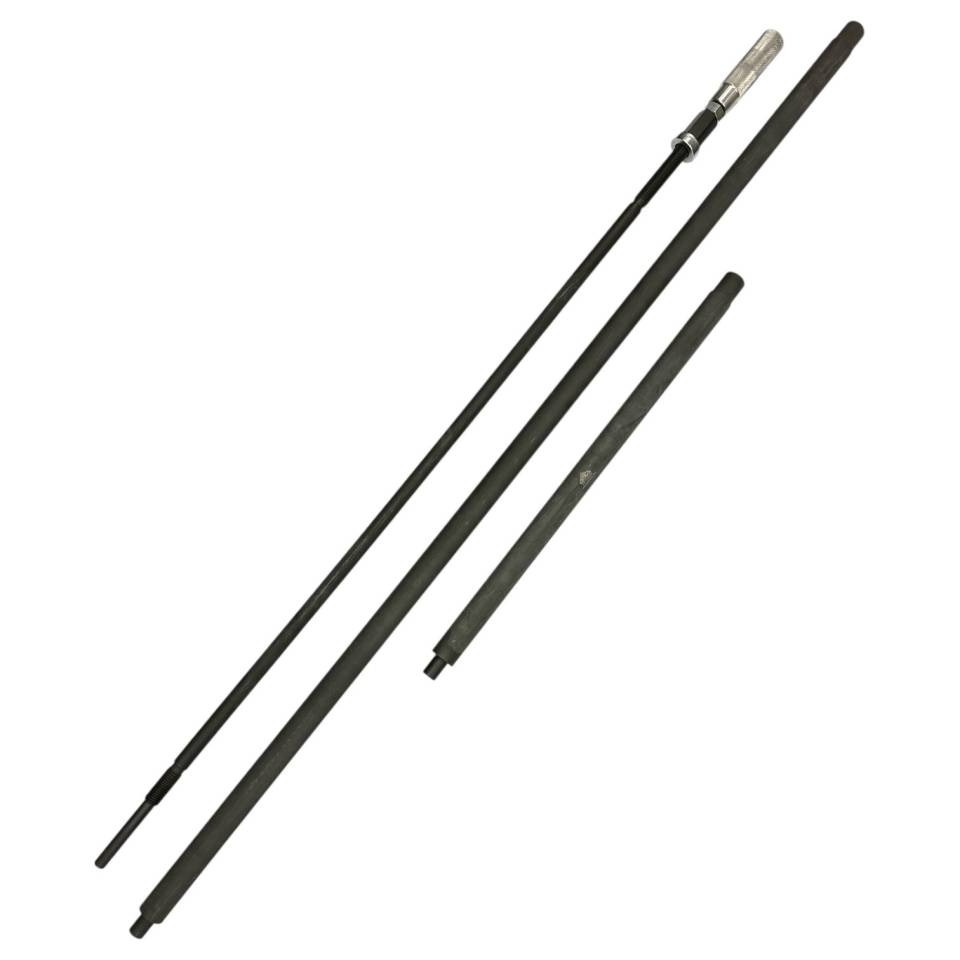

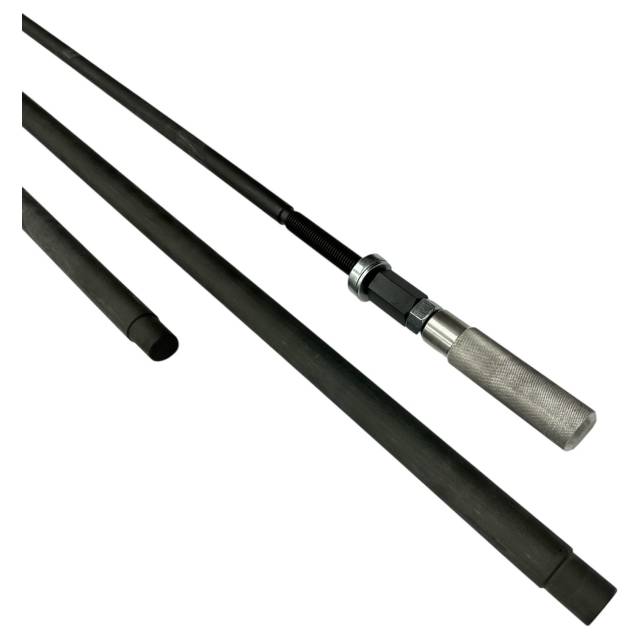

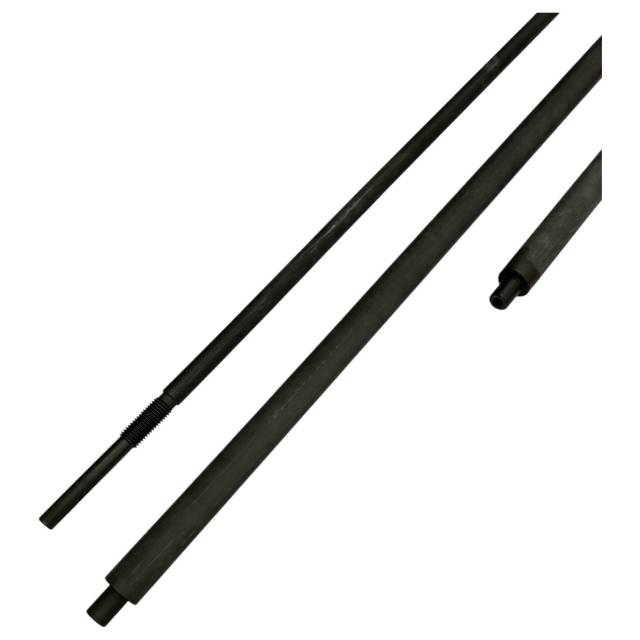

Bearing Removal: Safe Extraction with M20060-03 Puller

When a rebuild requires bearing replacement or machine shop work, the M20060-03 puller bar safely extracts old bearings without scoring bores:

1. Insert puller bar under bearing at two opposite points (90° apart).
2. Apply steady, even pressure—pulling straight out perpendicular to block.
3. Go slowly—listen and feel for bearing to lift evenly.
4. Once bearing clears bore, remove and inspect bore for damage.

Engine Shop Math: Why Every Technician Needs M20060-03

Comparison: Hand Tools vs. Dedicated Kit

Perfect Cam Bearings = Long-Lived Engines
