MaxxForce 11 & 13 Fuel Rail Diagnostic Procedure: ATC ZTSE4900 Guide
By Blogdashfdhd Adminvsbgfsf •

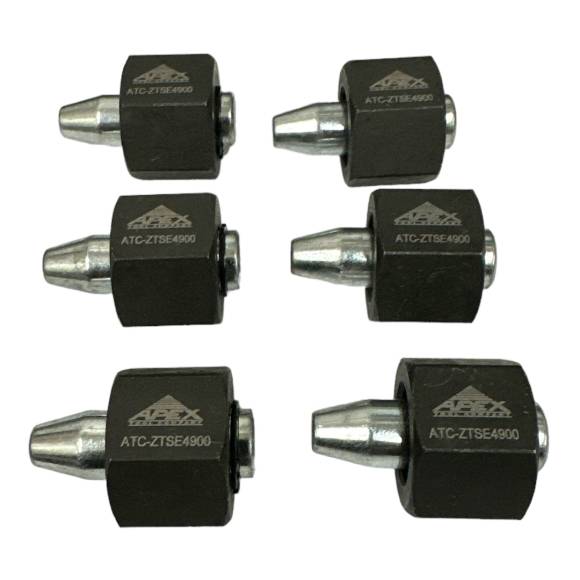

This 10-phase procedure uses the ATC ZTSE4900 rail plugs to safely isolate and diagnose high-pressure fuel rails on MaxxForce 11 & 13 engines—prevents leaks and enables accurate injector & rail testing.
Introduction: Safe High-Pressure Rail Diagnostics for MaxxForce Engines
The ATC ZTSE4900 plugs allow controlled isolation—vital for preventing fuel hazards and achieving accurate pressure & injector diagnostics.
Phase 1-3: Preparation & System Safety
- Secure vehicle / engine – Lift or stand support
- Relieve fuel system pressure – Follow OEM safety procedure
- Locate high-pressure rail & injectors – Clean area for access
Phase 4-6: Rail Plug Installation & Isolation
- Select appropriate ZTSE4900 plugs – Match rail ports
- Install plugs securely – Hand-tighten then torque to spec
- Isolate rail segments – Block flow to specific injectors
Phase 7-10: Pressure Testing & Verification
CRITICAL: ATC ZTSE4900 Diagnostic Protocol
- Connect pressure tester – Build & monitor rail pressure
- Test for leaks & drops – Isolate faulty sections
- Remove plugs & reassemble – Clean & torque to spec
- Run engine & verify operation – Check codes & performance
Critical Warnings: High-Pressure Rail Diagnostic Hazards
AVOID THESE DANGEROUS MISTAKES:
- ❌ No pressure relief – Fuel spray injury
- ❌ Improper plug torque – Leak or plug ejection
- ❌ Skip isolation – Inaccurate diagnostics
- ❌ No PPE / containment — Fuel hazard
- ❌ Ignore codes after test — Undetected issues
Why ATC ZTSE4900 Beats Makeshift Plugs
Makeshift Risks:
- ❌ Poor seal → $2K+ contamination
- ❌ Leakage → Fuel spray hazard
- ❌ Inaccurate test → Misdiagnosis
ATC ZTSE4900 Advantages:
- ✅ High-pressure rated seal
- ✅ Full rail isolation capability
- ✅ Accurate injector & rail testing
- ✅ Faster, safer diagnostics
- ✅ Saves $8K–$26K per bad job
- ✅ MaxxForce reliability
Isolate MaxxForce Rails Professionally. No Leaks. Precise Testing. Faster Accurate Repairs.
Get ATC ZTSE4900 – $149.00
