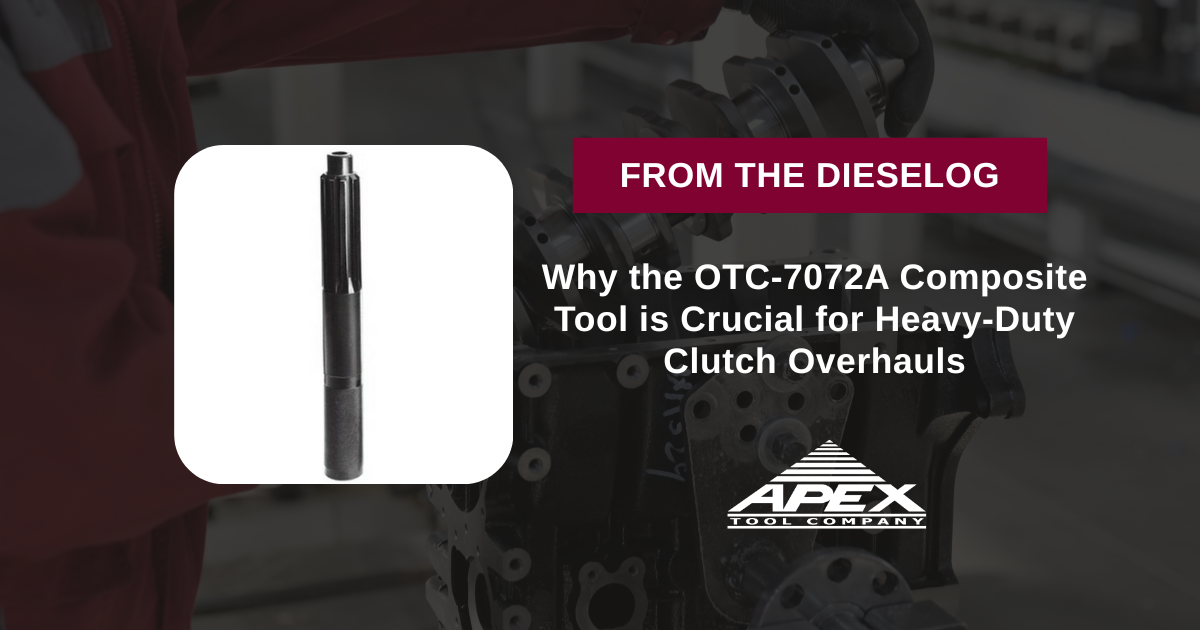

Why the OTC-7072A Composite Tool is Crucial for Heavy-Duty Clutch Overhauls
Eliminate input shaft binding and synchronize dual friction discs cleanly with high-strength composite precision.
Wrestling a heavy Class 8 transmission into position only to have it jam inches from the engine block? You are likely dealing with a classic spline misalignment trap. The OTC-7072A Truck Clutch Alignment Shaft delivers the exact dimensional control needed to index dual-disc configurations perfectly and drop transmissions home smoothly.
The Crucial Physics of Dual-Disc Spline Synchronization
On heavy-duty vocational trucks and commercial line-haul tractors, transferring massive torque requires robust dual-disc clutch assemblies. Because these systems deploy two separate friction discs nested face-to-face inside the pressure plate, their internal splines must line up with absolute geometric precision relative to the flywheel pilot bearing. Attempting to align these discs freehand or utilizing soft, universal plastic dummy shafts is a severe workshop liability. Under the massive downforce of heavy-duty pressure plate springs, standard plastic tools twist or sag off-center under the load. When the line technician attempts to stab the transmission input shaft home, the misaligned splines act as a dead stop, forcing the crew to rock or pry the heavy gearbox. This off-axis force easily bends the friction disc hubs or scores the input shaft splines, causing clutch release issues or immediate drivetrain vibration. The OTC-7072A completely eliminates this hazard. Constructed of a rigid, fiberglass-reinforced nylon body, it holds its absolute axis line under maximum weight loads without deforming.
- Precision 1-1/2″ Outer Diameter Profile – Engineered to match industry-standard commercial truck clutch disc splines flawlessly with zero loose rotational play.
- Dedicated 1″ Pilot Snout Alignment – Seamlessly slides into the engine flywheel's pilot bearing cavity to lock the central axis line down square.
- Advanced Fiberglass-Reinforced Nylon – High-rigidity composite blend handles heavy pressure plates without deforming, yet won't hang up, burr, or drag inside the metal splines.
- Complete Multi-Brand Fleet Fitment – Tailored to match a massive footprint of medium and heavy-duty manual commercial truck transmissions.
- Ultra-Agile Utility Tool Profile – Packing a lightweight 1.00 lbs shipping weight, this rugged alignment mandrel slides neatly into any field triage bag or top toolbox bay drawer.
Stop Wrestling Your Transmissions. Command Absolute Drivetrain Parallelism.
The OTC-7072A Truck Clutch Alignment Shaft is a mandatory asset for independent diesel repair centers, municipal fleet maintenance karts, and transmission overhaul stalls. Take the muscle out of heavy transmission installation—lock down a perfect line with OTC.
Rigid Composite Engineering. Zero Drag Input Shaft Synchronization.
Order the OTC-7072A Alignment Tool – $48.48Technical Specifications
| Technical Parameter | Value / Fleet Alignment Metric Specifications |
|---|---|
| Main Shaft Outer Diameter (O.D.) | 1-1/2 Inches (1.50″) Heavy-Duty Spline Match |
| Pilot Tip Diameter Size | 1 Inch (1.00″) Flywheel Bearing Pilot Reference |
| Material Forging Class | Lightweight, High-Rigidity Fiberglass-Reinforced Nylon Composite |
| Primary Tooling Target | Medium and heavy-duty commercial truck clutch disc and pressure plate installation |
| Anti-Hangup Performance | Zero-marring, self-lubricating surface matrix stops inner spline binding |
| Total Tool Shipping Weight | 1.00 lbs (Ultra-agile, dense heavy-duty composite mandrel) |
