Tech Guide: Paccar MX-11 Crankshaft Seal Replacement
Pulling a flywheel housing just to fix a rolled lip is a nightmare. Learn the step-by-step professional method for sealing the MX-11 platform with the ATC 1903058 tool suite.
The Crucial Physics of PTFE Sealing Rings

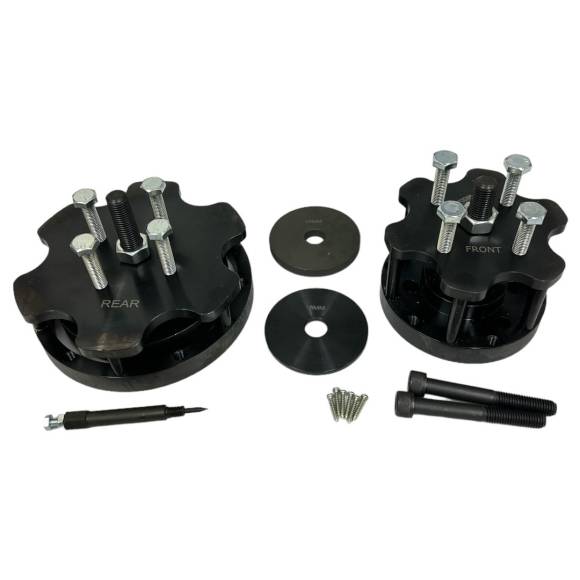

Modern Paccar MX-11 platforms utilize advanced polytetrafluoroethylene (PTFE) crankshaft seals. Unlike old-school rubber elastomeric seals that feature a flexible garter spring, PTFE seals require an incredibly strict, dry, and completely uniform alignment initialization path during installation. If the seal is pushed onto the crankshaft extension unevenly, the stiff inner lip will crease or flip, permanently losing its high-speed hydrodynamic scraping capability. The precision-machined guide sleeves in the ATC 1903058 kit act as a continuous bridge, seamlessly stretching the seal lip evenly onto the crank journal profile without an ounce of asymmetrical side-loading.
The 5-Step Crankshaft Seal Overhaul Protocol
- Access & Clean: For rear main work, drop the transmission and pull the flywheel block. Clean the crankshaft nose or flange aggressively to remove varnish, carbon scale, and metal filings. Ensure the seal journal surface is entirely dry—never oil a PTFE seal area!
- Extract the Failed Seal: Anchor the designated ATC 1903058 removal plates over the seal bore casing. Thread the integrated extraction screw handles down smoothly to draw the spent seal out from its land without letting any tools drift near the crank steel.
- Mount the Concentric Guide Adapter: Bolt the kit's heavy guide sleeve adapter tightly directly onto the crankshaft hub face, providing a concentric tracking track that lines up perfectly parallel to the centerline axis.
- Press the New Seal Home: Slide the fresh Paccar/DAF seal onto the pilot ring. Position the heavy driver plate over the assembly, and rotate the primary centercore mechanical driving screw using hand tools. Drive the seal steadily forward until the tool flange bottoms out flatly against the stop index point.
- Perform Validation Checks: Back off the driver plates and remove the guiding adapters. Execute a strict visual inspection to verify that the seal sits perfectly square within its receiver bore with zero lip distortion, providing long-term structural security.
PRO-TECH DIRECTIVE:
Always let a newly installed PTFE crankshaft seal settle on the dry crank journal for a minimum of 2 to 4 hours before starting up the engine block for the first time. This critical wait window allows the highly resilient plastic compound to naturally memory-shrink tightly around the shaft diameter, creating a reliable, long-lasting operating dynamic.
