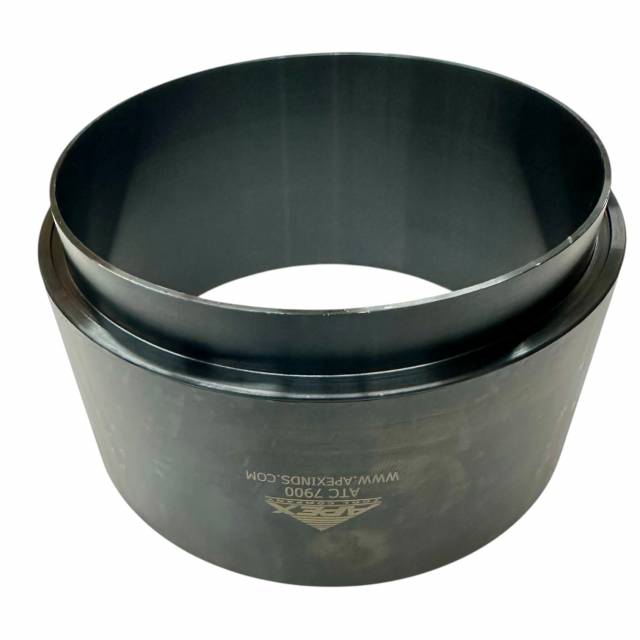

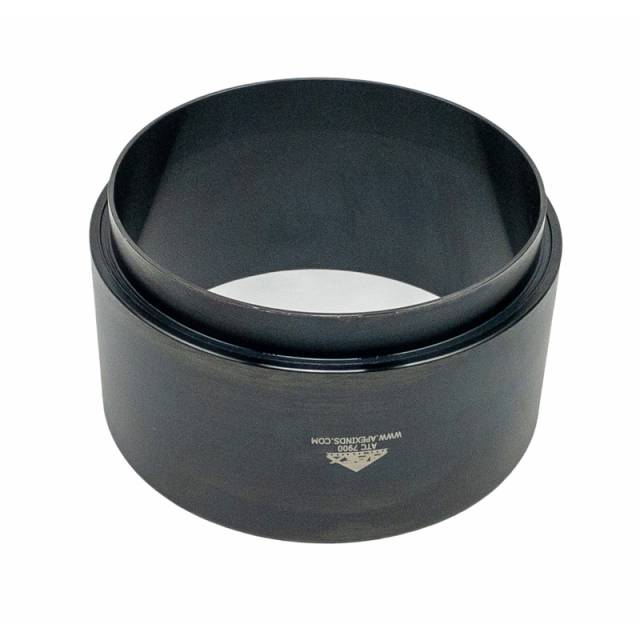

Installing pistons during a short-block build or in-frame overhaul on a PACCAR MX-13 engine? Attempting to compress modern multi-piece oil rings and hard-faced top compression rings using adjustable band pliers or generic band compressors introduces severe assembly hazards. Flexible bands cock on the deck chamfer, allowing ring tips to pop out and catch the liner edge. This snaps ring packs, scores graphite iron cylinder walls, and ruins overhaul profitability. The ATC 7900 Piston Ring Compressor is custom-machined for the exact 130mm bore geometry of the PACCAR MX-13, providing a smooth, tapered internal sleeve that glides pistons straight into cylinder liners with zero ring distortion.

The Critical Physics of Dedicated Sleeve-Type Piston Ring Compression

Modern heavy-duty commercial diesel engines like the PACCAR MX-13 operate under extreme cylinder pressures exceeding 2,500 PSI. To withstand these forces while maintaining strict emissions compliance, the MX-13 relies on specialized piston ring profiles featuring high radial tension, hard coating finishes, and complex oil expander springs. During short-block reassembly, compressing these stiff ring packs evenly into the 130mm cylinder bore requires absolute radial precision. Standard sheet-metal band tools flex under hand pressure, creating micro-gaps between the band bottom and the cylinder liner deck. When a mechanic taps the piston crown, an exposed ring tip catches on the liner top chamfer. Forcing the piston down snaps the brittle ring, gouges the piston land, or deep-scratches the hone cross-hatch of the cylinder sleeve. The ATC 7900 Piston Ring Compressor eliminates these short-block assembly risks. Precision-machined from solid high-tensile alloy tool steel, it features a fixed-diameter internal taper engineered specifically for the MX-13 piston assembly. Resting flat against the top deck of the liner, the rigid sleeve compresses all three rings simultaneously flush into their lands, allowing the piston to glide downward into the bore with light mallet pressure.

• Dedicated PACCAR MX-13 Fitment – Engineered specifically for the 130mm cylinder bore geometry and ring pack profiles of PACCAR MX-13 commercial diesel engines.
• Solid Tapered-Sleeve Architecture – Fixed-diameter precision bore compresses ring packs 360 degrees uniformly without the edge flexing or tipping common in adjustable bands.
• Zero Ring Damage Guarantee – Smooth, polished internal taper guides pistons straight down into cylinder liners, eliminating broken ring tips and scored liner walls.
• Heavy-Duty Shop Tool Construction – Substantial 5.00 lbs solid steel build designed to withstand continuous daily use in commercial engine rebuild stalls and dealership bays.
• Streamlines Short-Block Assembly – Speeds up piston installation while ensuring repeatable first-pass build quality across all six cylinders.

Stop Snapping Piston Rings. Command Total PACCAR MX-13 Engine Assembly Precision.

The ATC 7900 Piston Ring Compressor – PACCAR MX13 Engine Service Tool is an essential capital asset for Kenworth and Peterbilt service centers, fleet overhaul facilities, engine remanufacturers, and heavy-duty repair shops. Protect short-block assemblies, prevent liner scoring, and install pistons with complete mechanical authority using Apex tools.

Technical Specifications

Technical Metric	Value / Fitment Reference Guidelines
Target Engine Platform	PACCAR MX-13 Commercial Diesel Engines (Kenworth & Peterbilt)
Primary Operational Function	Concentric 360° ring compression for safe piston installation into cylinder liners
Tool Design Architecture	Fixed-diameter precision tapered sleeve ring compressor
Part / Model Reference Number	ATC 7900 (ATC7900 / 7900)
Construction Metallurgy	High-tensile forged and polished alloy tool steel
Total Package Shipping Weight	5.00 lbs (Substantial, professional shop service tool)

---
