Setting Cursor 8-13 Timing: A Technical Rebuild Guide
By Blogdashfdhd Adminvsbgfsf •
Improper timing on an Iveco or New Holland Cursor engine is a recipe for disaster. Follow this technical guide to ensure your synchronization is flawless using the 99360612 tool.
Why Mechanical Synchronization is Key
In the Cursor F2 and F3 series, the relationship between the camshaft and crankshaft dictates not just valve opening, but also the injection timing window. Even a small error can trigger "Timing Out of Sync" fault codes or, worse, internal mechanical contact.
Step-by-Step Timing Alignment
- Rotate to TDC: Turn the engine manually to the Top Dead Center (TDC) position for cylinder #1.

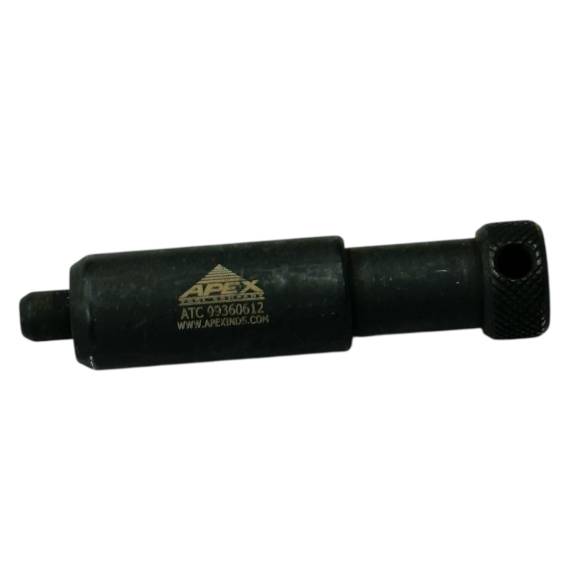

- Insert the 99360612 Tool: Place the timing tool into the designated flywheel or gear housing reference port.
- Verify Engagement: Ensure the pin seats fully, locking the component in its precise timing orientation.
- Set the Camshaft: Align the camshaft timing marks while the crankshaft is locked by the tool.
- Torque Gear Bolts: Tighten timing gear or camshaft bolts to factory specs, confident that the assembly cannot shift.
- Remove and Rotate: Always remove the tool before rotating the engine by hand to double-check all marks.
Pro-Tips for Fleet Technicians
REBUILD BEST PRACTICES:
- ✅ Tool Inspection: Check the 99360612 for any burrs or bending before use. A damaged tool can lead to a false reading.
- ✅ Clean Ports: Ensure the reference port on the engine is free of grit or old gasket material so the tool seats perfectly flush.
- ✅ Markings: Use a paint pen to verify your gear marks visually after the tool confirms the lock.
