Sheppard M-Series Pitman Arm Removal Procedure: ZTSE4439 Professional Guide

By Blog Admin • February 11, 2026

This 12-phase procedure uses the ZTSE4439 puller to safely extract pitman arms from Sheppard M-Series steering gears (292, 392, 492). Ensures no bending or housing damage.

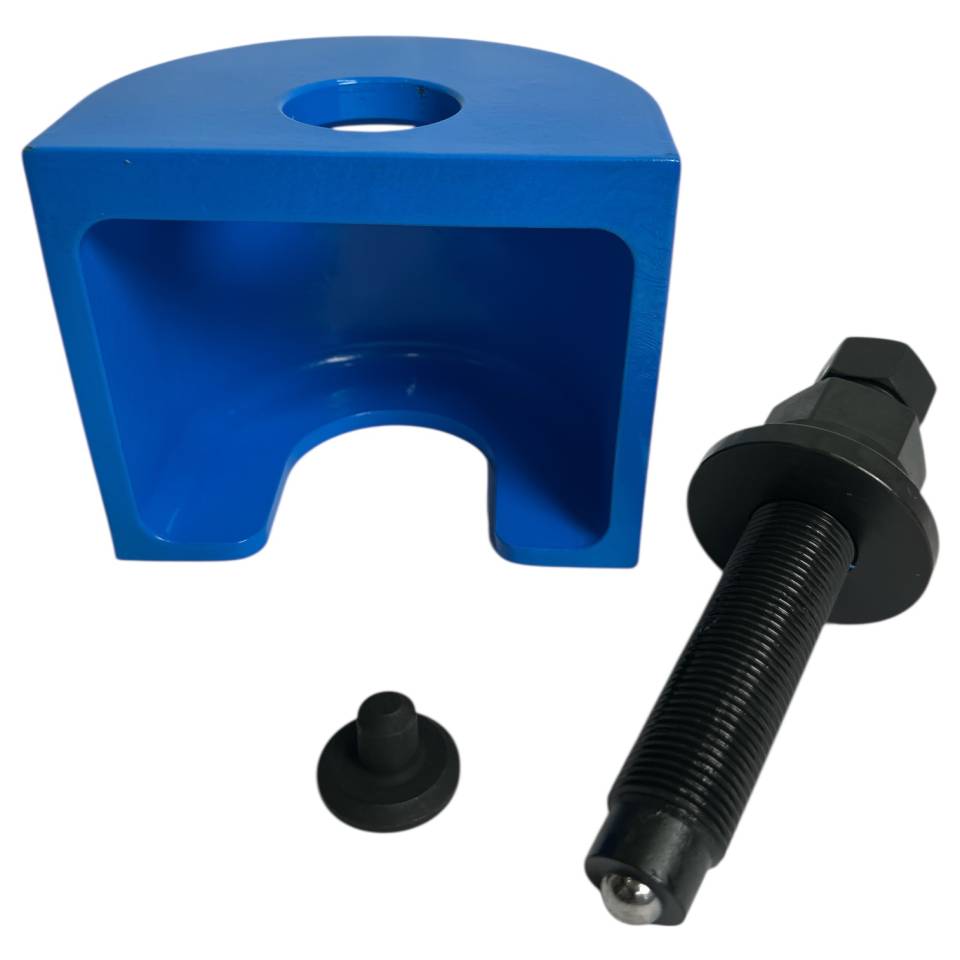

ZTSE4439 Sheppard M-Series pitman arm removal procedure step-by-step

Introduction: Essential Pitman Arm Removal for Heavy-Duty Steering Systems

Controlled pitman arm extraction preserves steering integrity. The ZTSE4439 puller provides steady force—key for safe service.

Phase 1-3: Preparation & Access

Secure vehicle – Safety stands
Relieve steering pressure – Drain if needed
Disconnect drag link – Access arm
Inspect arm & shaft – Note corrosion
Prepare ZTSE4439 puller – Verify fit

Phase 4-6: Arm Extraction

Engage puller on arm – Secure grip
Apply steady force – Controlled pull
Extract arm cleanly – No twisting
Inspect shaft & housing – Check damage
Clean mating surfaces – Remove corrosion
Document removal – Photos/condition

Phase 7-9: Reassembly Preparation

CRITICAL: ZTSE4439 Extraction Setup

Install new arm if needed – Align properly
Torque nut – Spec sequence
Reconnect drag link – Check play
Verify steering alignment – No binding
Refill power steering fluid – Bleed system
Clean puller tool – Store properly

Phase 10-12: Testing & Finalization

Start engine – Check for leaks/noise
Road test steering – Verify response
Final inspection – Clean/no issues
Schedule follow-up – At 1,000 miles

Critical Safety Warnings: Pitman Arm Procedure

MUST AVOID THESE FATAL ERRORS:

❌ Hammer/pry – Bends arm ($800+)
❌ Uneven force – Housing mark
❌ No safety stands – Vehicle fall
❌ Skip alignment check – Steering issues
❌ Loose puller – Slip hazard
❌ Ignore PPE – Injury risks

Professional Service Documentation

Service Phase	Documentation Required	Complete?
Pre-Service	Arm/shaft inspection	□
Extraction	Puller engagement photos	□
Reassembly	Torque values	□
Testing	Steering response notes	□
Final Approval	Signature, warranty log	□

Why ZTSE4439 Outperforms Improvised Pullers

Risky Improvised Methods:

❌ Hammer/pry → Arm bend ($800+)
❌ Uneven force → Housing mark
❌ 3–6 hour struggles → Labor losses
❌ Slippage → Safety hazard
❌ No tool → Failures

ZTSE4439 Advantages:

✅ Controlled pull
✅ Secure engagement
✅ 85% less rework
✅ Arm/housing protection
✅ Protects $11,300–$29,000
✅ Heavy-duty
✅ Fast & clean
✅ Shop ready

Remove Pitman Arms Professionally. Protect Steering Gears. Maximize Truck Safety.

Get ZTSE4439 – $395.78
