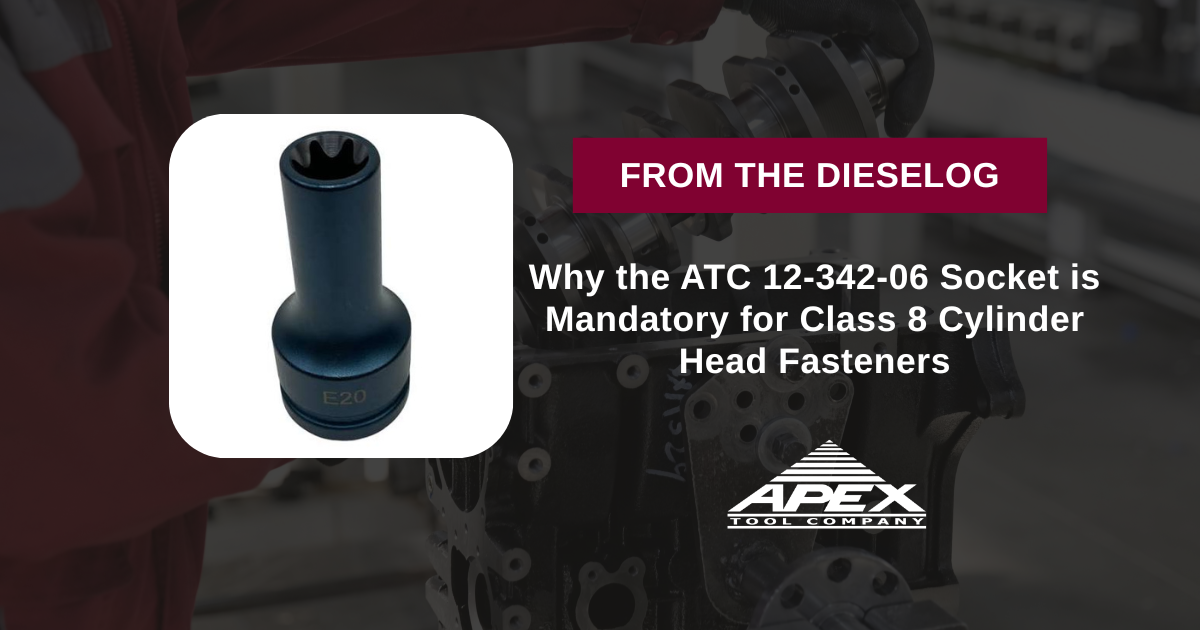

Why the ATC 12-342-06 Socket is Mandatory for Class 8 Cylinder Head Fasteners
Eliminate tool flex and execute precision torque-angle specifications with an unyielding deep-wall alloy forge.
Cracking or torquing a massive E20 star head bolt under multi-stage torque-plus-angle routines is a high-stakes operation. Standard thin-wall socket options flex, ride up, or shatter under the intense stress. The ATC 12-342-06 3/4" Drive Impact Socket provides the deep mechanical grip and unyielding rigidity needed to secure high-pressure head assemblies flawlessly.
The Crucial Physics of Torx Plus Star Fastener Engagement
On modern heavy-duty commercial vehicle engine architectures, cylinder head bolts endure extreme tensile tension to maintain gas fire-ring integrity across the block face. To distribute this immense clamping force without widening the bolt head diameter, factory engineers deploy specialized External Torx (E-Star) configurations. Executing multi-stage torque-plus-angle torque sweeps on these E20 fasteners using cheap chrome sockets or universal drive adapters is an absolute workshop trap. Under massive multi-hundred foot-pound clamping cycles, standard tools experience extreme torsional deflection. This flex causes the inner splines to slip upward, shaving the bolt's external star teeth and rounding off the fastener inside cramped cam housings. The ATC 12-342-06 eliminates this catastrophic failure path entirely. Forged with thick high-impact walls and featuring a robust 3/4-inch square drive well, this 90mm extended tool transfers pure, raw rotational energy deep into the fastener recess with zero tool windup.
- Precision E20 External Star Architecture – Engineered to perfectly match the strict tooth profiles of heavy-duty diesel cylinder head fasteners.
- Extended 90mm Deep-Reach Construction – Seamlessly clears overhead valvetrain housings and restrictive chassis obstacles with zero extension play.
- Industrial 3/4″ Square Drive Interface – Built to handle high-leverage shop breaker bars, premium digital torque wrenches, and structural pneumatic impact tools.
- Uncompromising Impact-Alloy Metallurgy – Specially hardened tool steel absorbs intense high-torque hammering shocks without cracking or deforming.
- Agile and Dense Specialty Mass – Weighing a solid 1.00 lbs, this compact power tool balances effortlessly on long-haul service benches and master technician carts.
Stop Rounding Structural Star Bolts. Command True Torquing Authority.
The ATC 12-342-06 Star E20 Impact Socket is a necessary addition to the tool crib of any commercial transit hub, vocational fleet maintenance facility, or independent diesel drivetrain machine lane. Secure your build metrics and eliminate stripped fastener rework costs with Apex.
Zero Spline Deflection. Flawless Structural Head Fastener Seating.
Order the E20 Head Bolt Socket – $35.00Technical Specifications
| Technical Metric | Value / Fleet Application Parameters |
|---|---|
| Socket Female Profile | E20 (External Torx / Star Design Layout) |
| Drive Well Interface Tang | 3/4″ (3/4 Inch) Standard Heavy-Duty Drive Square |
| Total Structural Length | 90 mm Extended Deep-Reach Impact Profile |
| Primary Field Application | Commercial vehicle cylinder head bolt teardown and multi-stage angle assembly |
| Material Forging Configuration | High-tensile impact-grade structural shop tool steel alloy |
| Total Shipping Weight | 1.00 lbs (Dense, high-load industrial hand tool socket) |
