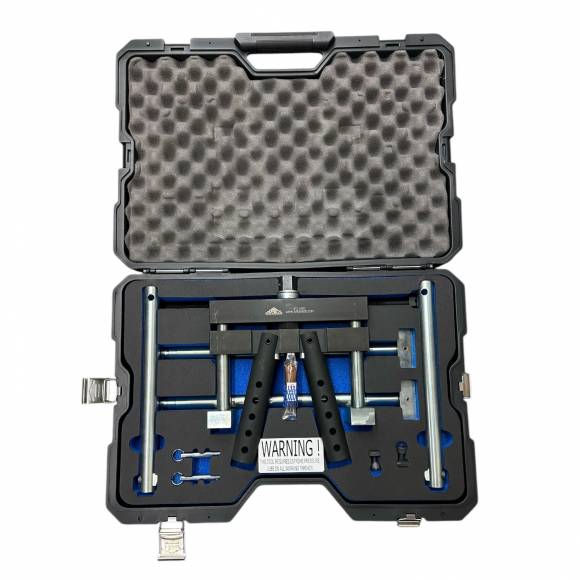

Prepping a block for a fresh set of sleeves on a Cummins, Caterpillar, or International engine? Master the structural setup required to pull frozen liners safely using the ATC6400 fixture.

Why Asymmetrical Prying Destroys Block Counterbores

The machining tolerances inside a heavy commercial diesel engine block leave zero margin for sideloads. When a technician tries to force out a stuck wet sleeve by prying underneath the top flange or hitting it with an off-center driver, the sleeve tilts instantly. This sharp angular movement forces the hardened outer surface of the liner to dig straight into the softer cast iron counterbore channels of the block deck. Once scored, gouged, or out-of-round, the block will lose its physical capacity to crush a fresh rubber seal ring cleanly, causing continuous cooling system leaks or oil pan cross-contamination post-build. Utilizing a bridge-supported overhead mechanical weapon like the ATC6400 locks the extraction forces onto a strict, centralized linear path, drawing out the core completely straight.

The 5-Step Mechanical Separation Protocol

1. Perform Workspace Cleanliness Audit: Strip the top-end, pistons, and crank components. Scrape off all accumulated rust and carbon sludge from the upper liner lips to reveal clean tracking pathways. Lubricate the primary draw bolt threads of the ATC6400 kit with extreme pressure moly grease.
2. Adjust and Position the Support Legs: Set the width of the heavy pulling bridge legs so they sit squarely on the structural shoulder planes of the engine block deck. Never let the support shoes overlap the sensitive cylinder liner flange packing land area!
3. Engage the Spring Puller Feet: Collapse the tool's lower spring-actuated puller feet and push the shaft assembly straight down through the cylinder bore. Expand the feet completely underneath the bottom edge rim of the liner casting, checking that they snap into a secure, flat orientation.
4. Execute Controlled Pulling Leverage: Hold the primary overhead bridge hex stationary with a long backup wrench. Rotate the primary mechanical force screw clockwise slowly using a manual high-leverage breaker bar. The initial high tonnage will break the mineral scaling boundary with an audible metallic release.
5. Complete Extraction & Counterbore Audit: Continue winding the driving screw steadily to draw the sleeve fully out of the parent bore. Pull the spent core from the block, discard the rotten rubber seals, and inspect the lower counterbore walls for cavitated scaling before prepping for honing.

---
