Pulling a damper pulley just to fix a leaking oil seal is tedious. Learn the proper, step-by-step professional method for setting front mains with the ATC 88800021 driver.

Why Flat Concentric Force Beats Hammering

Modern Volvo and Mack engines use advanced, stiff sealing compounds that require a completely linear alignment initialization path. If a technician uses a generic driver cap or sleeve pipe to drive the front main seal home with a mallet, the force strikes irregularly. This asymmetrical momentum cocks the metal casing within the front cover hole, creating micro-gaps that cause rapid weeping. Even worse, hammer shocks can drop the internal garter spring out of its rubber retention groove completely undetected. Utilizing a threaded, pilot-aligned mechanical tool like the ATC 88800021 transfers unyielding, uniform pressure that draws the seal down flat and unmarred.

The 5-Step Professional Installation Sequence

1. Damper Removal & Inspection: Remove the front accessory belts, fan drive hub, and vibration damper. Clean the crankshaft snout and front cover seal bore cavity obsessively using solvent to strip off all oil sludge and varnished varnish residue.
2. Prep the Crank Surface: Inspect the crankshaft nose for any grooving or surface scaling from the previous seal. Ensure the surface is completely dry and free of nicks before introducing the new seal element.
3. Position the New Seal Element: Slide the fresh oil seal onto the pilot nose of the crankshaft, making certain the primary sealing lip is oriented correctly facing inward toward the engine timing gears.

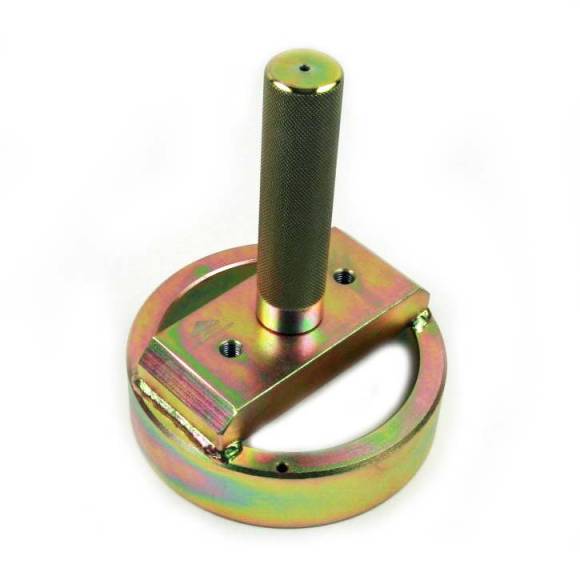

4. Configure the ATC 88800021 Tool: Fit the heavy-duty ATC 88800021 installer tool body over the crankshaft extension. Thread the primary center mechanical force bolt straight into the center of the crank snout snout cleanly, ensuring full thread engagement to square up the assembly.
5. Drive the Seal to Stop: Rotate the mechanical drive nut clockwise using standard manual hand tools. The tool will glide smoothly, transferring balanced axial force to push the seal perfectly flush into the timing cover until the machined shoulder bottoms out squarely against the housing face. Back off the tool and verify the installation.

---
