Servicing a leaking front crankshaft seal on a Volvo or Mack heavy highway tractor? Follow this step-by-step professional workshop procedure to press seals squarely to exact factory depth limits using the ATC 88800501 installer tool.

Why Off-Angle Driver Pressure Destroys Timing Cover Seals

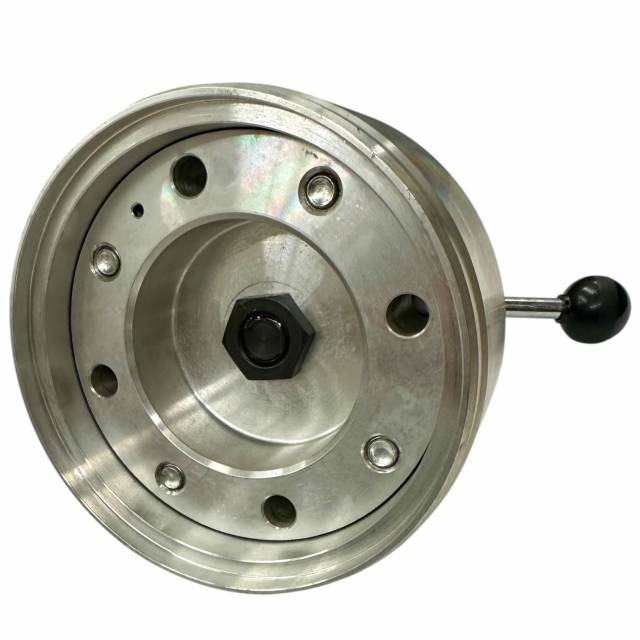

The front crankshaft oil seal on Volvo D13 and Mack MP8 engines seats inside the front timing gear cover. During assembly, the flexible sealing lip must expand evenly over the sharp shoulder step of the crankshaft snout. When a technician attempts to drive the seal into the housing using generic flat driver cups, wooden blocks, or perimeter hammer taps, force is applied unevenly across the circumference. The seal cocks sideways in the bore well, folding the sealing lip backward or scoring the soft metal casing. A rolled lip has zero radial sealing force, letting hot engine oil spray past the crankshaft as soon as the engine builds oil pressure. Utilizing a pilot-guided draw-bar tool like the 9-pound ATC 88800501 anchors all force squarely to the crankshaft center, drawing the seal perfectly parallel into its housing bore.

The 5-Step Front Main Seal Installation Protocol

1. Front Accessory Teardown & Surface Cleaning: Remove the drive belts, fan hub assembly, and vibration damper. Clean all old oil, road grime, and carbon scale off the crankshaft snout and timing cover bore using quick-drying solvent. Inspect the shaft journal for deep grooves or burrs.
2. Mount the Pilot Guide Hub: Bolt the inner pilot guide mandrel of the ATC 88800501 kit flatly against the front crankshaft flange nose using the provided mounting bolts. Thread the fasteners down smoothly by hand to ensure the pilot plate sits dead-centered and flush.
3. Stage the Replacement Oil Seal: Position the fresh oil seal squarely over the pilot guide sleeve. *Note: Ensure the seal is oriented correctly per factory service guidelines and that the shaft snout is completely clean and dry.*
4. Position the Driver Cup & Forcing Hardware: Slide the large outer driver cup collar over the pilot mandrel. Thread the heavy central forcing nut onto the center bolt by hand until the driver cup settles flat against the outer seal casing.
5. Execute Controlled Parallel Pressing: Using a manual 1/2" drive socket or breaker bar, turn the central force nut clockwise in a smooth, continuous motion. The driver cup will press the seal evenly into the timing cover bore. Continue turning until the tool flanged shoulder bottoms out flat against the guide stop, setting the seal to exact OEM depth limits. Back off the nut, unbolt the pilot hub, and reinstall the front engine accessories.

---
