Tech Guide: Volvo D16 Timing Cover & Seal Installation
Accuracy in the front-end assembly is critical for long-haul reliability. Learn the professional way to use the ATC 9998318 on Volvo D16 engines.
Why Improper Leveling Leads to Failure
The front timing gear cover on a Volvo D16 isn't just a dust shield; it's a structural component of the cooling system. If the cover is installed at even a slight angle, the bore for the thermostat seal is no longer concentric to the housing. This leads to "seal pinch," where the seal fails within weeks. The ATC 9998318 acts as a leveling press to hold the cover in the exact factory orientation while the seal is driven home.
The 5-Step D16 Assembly Procedure
- Clean the Interface: Ensure the engine block and timing cover mating surfaces are pristine.
- Cover Positioning: Fit the front timing gear cover loosely onto the block.

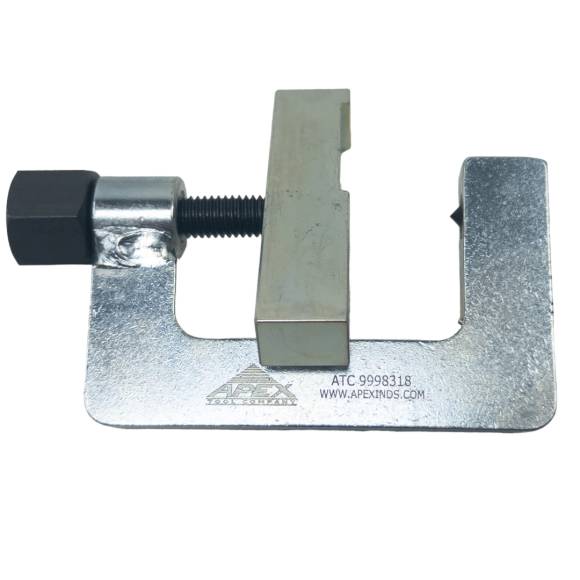

- Tool Engagement: Position the ATC 9998318 onto the cover. This tool will ensure the cover is level across its horizontal and vertical planes.
- Seal Pressing: Place the thermostat seal into the bore. Use the tool’s integrated press function to draw the seal into the cover bore until it reaches the pre-set depth stop.
- Torque Sequence: Tighten the timing cover bolts to factory specifications while the 9998318 maintains pressure, ensuring zero shift during the process.
PRO-TIP:
Always inspect the cover bore for microscopic pitting or corrosion before using the press. A light application of assembly lube on the seal's outer diameter will assist the ATC 9998318 in creating a smooth, non-distorted seat.
