Diagnosing low compression, hard starting, or power loss on a Volvo truck or equipment engine featuring the E3.1 fuel system? Follow this step-by-step professional workshop procedure to disable fuel delivery, clean unit injector sleeves, mount the ATCL-TU-15-86 adapter, and capture accurate cylinder PSI.

Why Loose Diagnostic Adapters Cause Dangerous Shop Errors

Compression testing on high-torque Volvo diesel engines requires an absolute, un-compromised seal at the fuel injector well. When cranking a Volvo E3.1 diesel engine, air inside the combustion chamber reaches peak pressures in a fraction of a second. If a technician uses an improperly fitting universal adapter or fails to replace the lower sealing washer, high-pressure air leaks past the tool body during cranking. This artificial pressure drop causes a falsely low reading on the testing gauge—leading mechanics to misdiagnose bad piston rings or worn valves when the cylinder is actually mechanically healthy. Furthermore, cranking an engine with a loose adapter blows carbon scale and soot past the injector sleeve, contaminating the well and damaging copper sealing surfaces. Utilizing a precision-machined adapter like the ATCL-TU-15-86 locked to the ATC4451 gauge seals the diagnostic path completely, guaranteeing 100% accurate PSI recordings across all cylinders.

The 5-Step Volvo E3.1 Compression Testing Protocol

1. Safety & Fuel System Disable: Warm the engine to operating temperature if possible. Shut off ignition and lock out starting circuits. Disconnect electronic unit injector wiring harnesses and disable the fuel injection pump to prevent fuel delivery during cranking.
2. Remove Unit Injector & Clean Well: Carefully unbolt the injector hold-down clamp and extract the E3.1 unit injector from the target cylinder. Use a brass bore brush and vacuum to clean carbon deposits off the copper sleeve landing. Remove old copper washers.

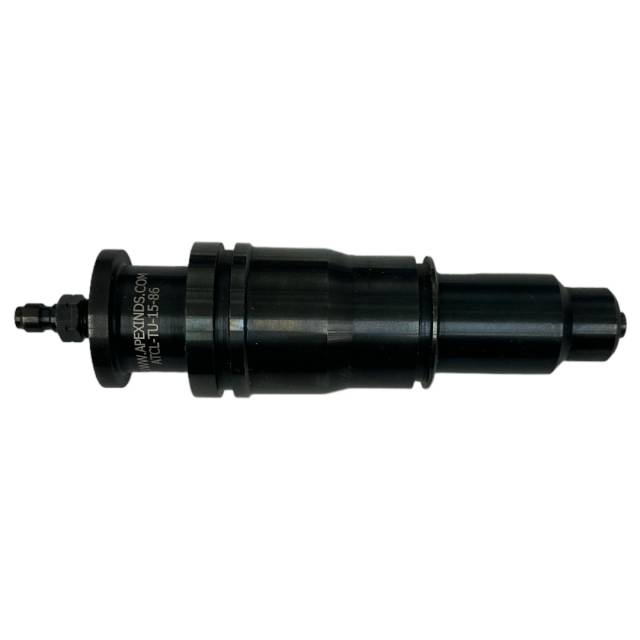

3. Install ATCL-TU-15-86 Adapter: Fit a fresh copper crush washer onto the tip of the ATCL-TU-15-86 compression adapter. Insert the adapter into the Volvo E3.1 injector well and tighten the hold-down clamp to manufacturer torque specs to seat the washer flat.
4. Connect ATC4451 Gauge & Crank Engine: Snap the quick-coupling hose of your ATC4451 diesel compression gauge securely onto the top nipple of the ATCL-TU-15-86 adapter. Crank the engine through 4 to 6 compression strokes until the gauge needle stabilizes, then record peak PSI.
5. Vent Pressure & Repeat Test: Depress the pressure release valve on the ATC4451 gauge to vent trapped air, disconnect the hose, and unbolt the adapter. Repeat across all remaining cylinders, verifying that variance between cylinders remains within factory tolerance (typically under 10–15%). Reinstall injectors with fresh seals upon completion.

---
