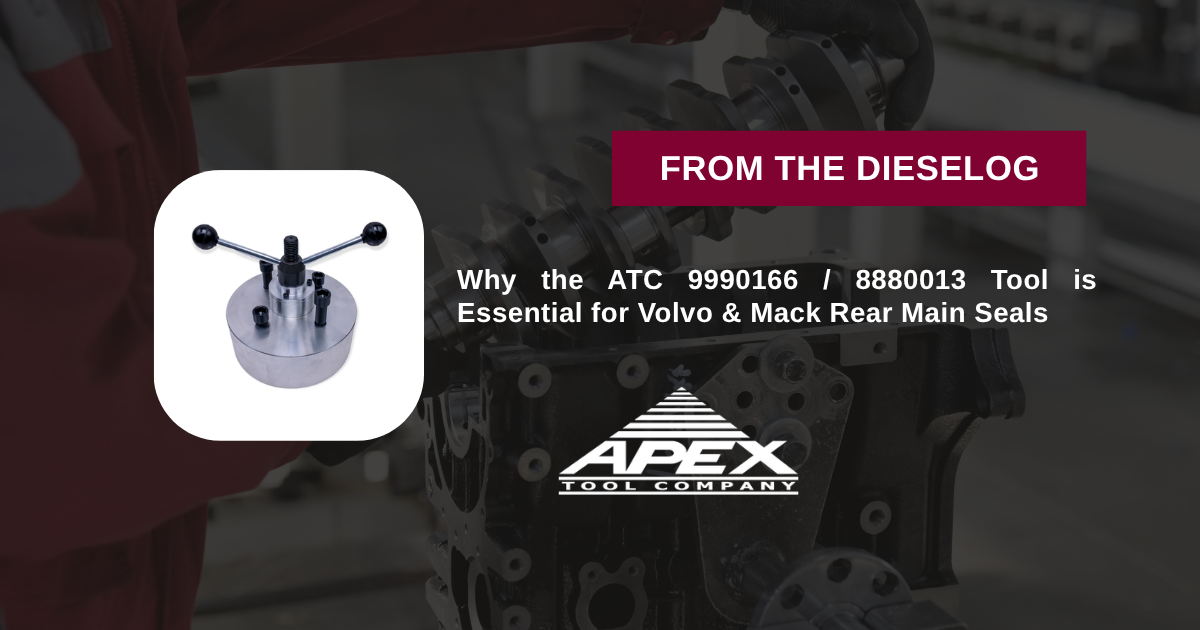

Why the ATC 9990166 / 8880013 Tool is Essential for Volvo & Mack Rear Main Seals
Eliminate flywheel housing oil leaks and drive main seals cleanly with concentric mechanical leverage.
Replacing a rear main oil seal on a Volvo D13 or Mack MP8 engine and trying to seat the carrier using flat plates, wood blocks, or perimeter hammer taps? You are taking a direct gamble on immediate flywheel housing leaks and expensive clutch oil contamination. The ATC 9990166 / 8880013 Master Rear Crankshaft Seal Installer provides the exact parallel mechanical draw needed to seat seals perfectly square to factory depth limits.
The Critical Engineering of Volvo & Mack Rear Crankshaft Sealing
Heavy-duty Class 8 commercial diesel engines—including the Volvo FM12, D12, D13, D16, and Mack MP8 / MP10 platforms—operate under extreme rotational torque and thermal stress. The rear crankshaft main seal isolates hot crankcase oil from the dry flywheel housing and clutch assembly. Installing one-piece elastomer and neoprene seals (such as part numbers 22191895 and 1543896) requires absolute concentric alignment with the crankshaft axis. Attempting to drive these wide-diameter seals home using unguided drivers or freehand hammer strikes creates an uneven distribution of force. If the seal cocks off-axis by even a fraction of a millimeter on entry, the sealing lip will buckle, roll, or tear against the sharp step of the crankshaft flange snout. Even if the lip remains intact, an un-level seal will wear unevenly around the spinning journal, leading to premature oil weeping that saturates the flywheel cavity. The ATC 9990166 / 8880013 installer eliminates these failure modes completely. Anchoring directly to the crankshaft hub, it forces the seal casing straight down a dead-parallel axis, stopping at the exact factory-mandated depth.
- Comprehensive Cross-Platform Application – Specifically engineered to service rear main seals across Volvo FM12, D12, D13, D16, and Mack MP8 / MP10 engine families.
- Direct OEM Factory Tool Interchange – Built custom to original equipment manufacturing dimensions, serving as a high-strength direct replacement for Volvo tool codes **9990166** and **8880013**.
- Damage-Free Lip Protection – Smooth pilot guidance slides seal lips (including 22191895 & 1543896) over the crankshaft flange step without pinching, tearing, or rolling.
- Concentric Alignment & Depth Control – Built-in mechanical stops press the seal dead-square to exact factory specifications every time.
- Heavy-Duty Industrial Shop Construction – Weighing a solid 10.00 lbs, this dense structural steel tool set is built to withstand repeated daily use in demanding fleet repair facilities.
Stop Gambling on High-Hour Drivetrain Seals. Command Flawless Rebuild Quality.
The ATC 9990166 / 8880013 Volvo & Mack Rear Main Seal Installer is an indispensable capital investment for commercial fleet maintenance, dealer-level service centers, and independent heavy-duty repair shops. Avoid costly repeat transmission drops, protect fresh clutch components, and install seals with absolute mechanical certainty using Apex.
Concentric Mechanical Precision. Eliminate Post-Rebuild Rear Main Leaks.
Order the ATC 9990166 Installer – $375.00Technical Specifications
| Technical Metric | Value / Fitment Reference Guidelines |
|---|---|
| Engine Compatibility Profile | Volvo FM12, D12, D13, D16 & Mack MP8, MP10 Heavy-Duty Diesel Platforms |
| Primary Tool Functionality | Rear crankshaft oil seal installation, depth alignment, and concentric pressing |
| OEM Special Tool Cross Reference | Direct functional equivalent for Volvo / Mack 9990166 and 8880013 |
| Target Seal Interchanges | Volvo / Mack seals 22191895, 1543896, and non-two-piece equivalents |
| Construction Material | Precision-machined, high-tensile structural shop steel alloy |
| Total Package Shipping Weight | 10.00 lbs (Substantial, block-stabilizing professional shop tool mass) |
