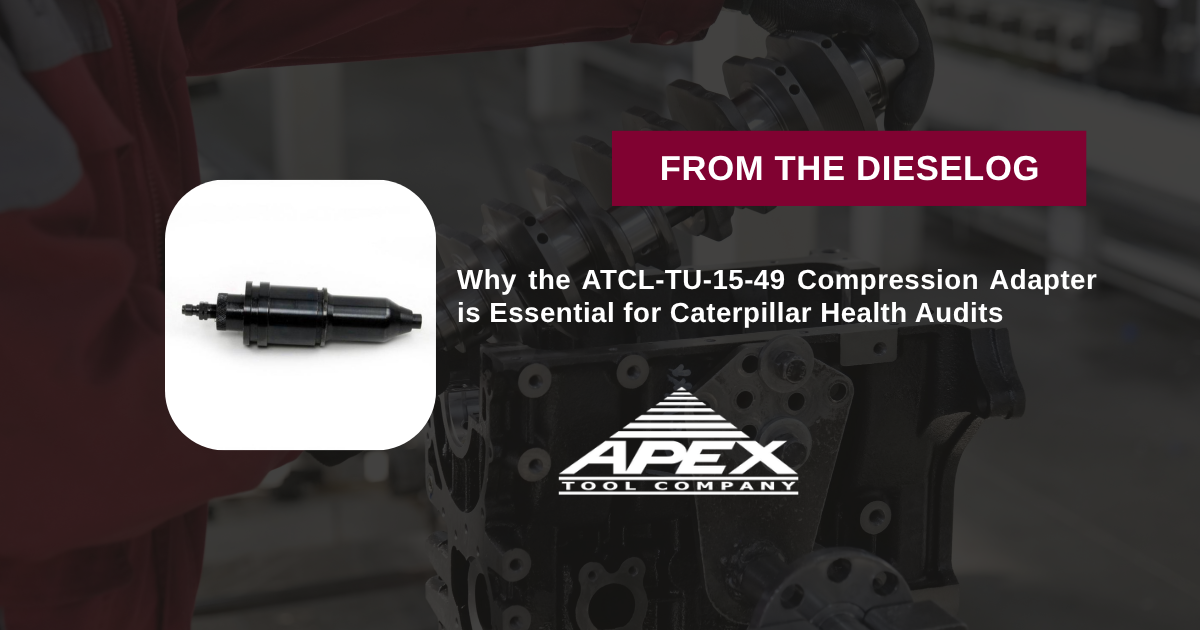

Why the ATCL-TU-15-49 Compression Adapter is Essential for Caterpillar Health Audits
Eliminate false low-compression readings and audit cylinder health with precision-machined injector bore adapters.
Chasing a dead cylinder misfire or evaluating blow-by on a Cat C15 or 3406E engine using generic or loose rubber cone compression adapters? Leaking diagnostic connections give artificially low PSI readings, leading to false diagnoses and wasted shop hours. The ATCL-TU-15-49 Compression Test Adapter locks securely into the injector bore to guarantee 100% leak-free, high-pressure cylinder health data.
The Critical Engineering of High-Pressure Diesel Compression Diagnostics
Heavy-duty Caterpillar platforms—including the 3406E, C13, C15, C16, C18, and V12 C27 engines—operate under intense static compression ratios. Accurately auditing dynamic cylinder pressure (typically 400 to 500+ PSI under cranking conditions) is the gold standard for identifying worn piston rings, damaged intake/exhaust valves, or scored cylinder liners. However, taking a compression test through an injector port requires a complete seal at the copper sleeve seat. Attempting to use universal push-in adapters, rubber expansion plugs, or ill-fitting fittings is a major workshop trap. High cranking pressures easily blow past loose adapters, leaking pressure out of the port well. This pressure loss results in false "low compression" readings, prompting mechanics to tear down healthy cylinder heads or condemn functional injectors. The ATCL-TU-15-49 adapter eliminates these diagnostic errors completely. Precision-machined to match exact Caterpillar unit injector body dimensions, it locks down flat into the injector bore using factory hold-down clamps—creating an airtight seal that transfers 100% of cylinder pressure straight to your gauge.
- Broad CAT Heavy-Duty Platform Fitment – Engineered explicitly to fit original injector bore contours across Caterpillar 3406E, C13, C15, C16, C18, and C27 diesel blocks.
- Standard Quick-Connect Coupling – Equipped with a quick-disconnect fitting designed for seamless integration with the ATC4451 diesel compression gauge set and standard Foster-style couplers.
- Zero-Leak High-Pressure Sealing – Replicates factory injector body seating to contain 500+ PSI cranking compression without pressure loss or blow-by weeping.
- In-Frame Diagnostic Efficiency – Connects quickly into the injector port without removing additional engine top-end hardware, speeding up troubleshooting passes.
- Heavy-Duty Shop-Grade Alloy Steel – Solid 1.00 lb precision-machined steel body resists thread galling, heat degradation, and shop floor impact wear.
Stop Guessing Cylinder Health. Command Total Caterpillar Diagnostic Precision.
The ATCL-TU-15-49 Cat Compression Test Adapter is an essential tool for commercial fleet repair facilities, independent diesel machine shops, equipment service trucks, and engine overhaul specialists. Stop chasing phantom power loss codes and verify true cylinder integrity with Apex tools.
Airtight Injector Bore Sealing. 100% Accurate Compression Metrics.
Order the ATCL-TU-15-49 Adapter – $77.50Technical Specifications
| Technical Metric | Value / Fitment Reference Guidelines |
|---|---|
| Engine Brand Compatibility | Caterpillar 3406E, C13, C15, C16, C18, and C27 Platforms |
| Gauge Interface Standard | Foster-Style Quick-Disconnect Coupler (Fits ATC4451 & TU-15 Gauges) |
| Model Part Number | ATCL-TU-15-49 / TU-15-49 |
| Primary Operational Function | Cylinder compression testing via unit injector bore porting |
| Construction Metallurgy | High-strength machined alloy steel with corrosion-resistant finish |
| Total Package Shipping Weight | 1.00 lbs (Compact, high-density diagnostic interface module) |
