Caterpillar 3406 Thread Insert Installation Procedure: LS-8704 Professional Guide
By Blogdashfdhd Adminvsbgfsf •
This 10-phase procedure uses the LS-8704 insert to repair stripped bolt holes on Cat 3406 engine blocks—restores strong, reliable threads for head bolts, liner bolts, or deck applications.
Introduction: Reliable Thread Repair for Cat 3406 Blocks
The LS-8704 insert provides full-strength repair—essential for maintaining head torque and gasket sealing without block replacement.
Phase 1-3: Preparation & Damaged Hole Assessment
- Secure engine block – Fixture or stand support
- Remove head / components – Gain full access to hole
- Inspect & measure damaged threads – Confirm stripping extent
Phase 4-6: Hole Preparation & Insert Installation
- Drill & tap to 7/8"-16 – Clean, straight, full depth
- Apply thread locker – High-strength compound on insert

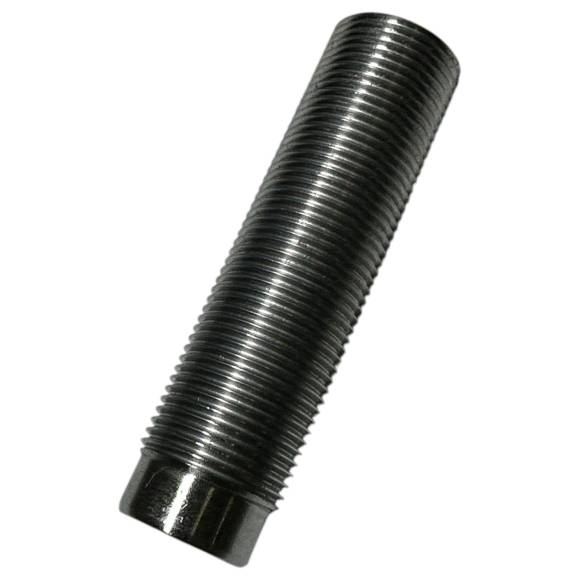

- Install LS-8704 insert – Torque to spec with proper tool
Phase 7-10: Finishing & Verification
CRITICAL: LS-8704 Insert Protocol
- Trim excess insert length – If required, flush to deck

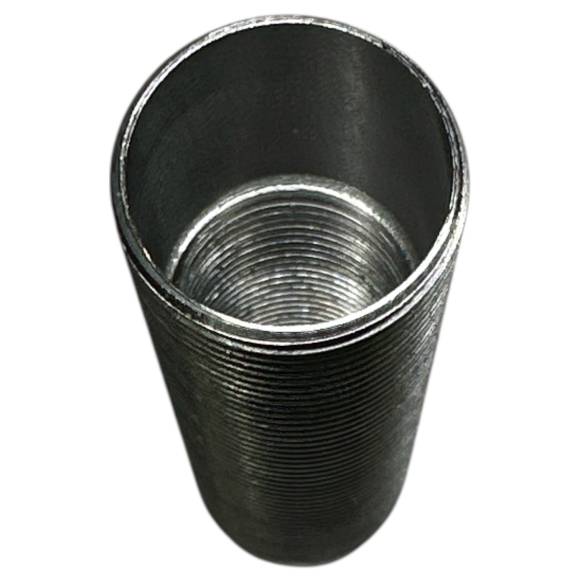

- Chase internal 3/4"-16 threads – Ensure clean & true
- Reassemble head / components – Torque to Cat specs
- Pressure test & run engine – Verify no leaks
Critical Warnings: Thread Insert Installation Hazards
AVOID THESE EXPENSIVE MISTAKES:
- ❌ Off-center drilling/tapping – Misaligned insert
- ❌ Insufficient depth – Weak thread engagement
- ❌ No thread locker – Insert backing out
- ❌ Over-torque insert – Block cracking
- ❌ Skip internal thread chase — Bolt binding
Why LS-8704 Beats Other Repair Methods
Alternative Risks:
- ❌ Heli-coil → $500–$2K failure risk
- ❌ Oversize bolt → Misalignment
- ❌ Block replacement → $8K–$18K cost
LS-8704 Advantages:
- ✅ Full-length 3-1/4" engagement
- ✅ Standard 3/4"-16 bolt compatibility
- ✅ Strong, reliable repair
- ✅ Saves block & thousands
- ✅ Bulk pricing down to $32.48
- ✅ Proven 3406 solution
Restore Cat 3406 Bolt Holes Professionally. Strong Threads. Save Thousands. Keep Blocks Alive.
Get LS-8704 – $56.00
