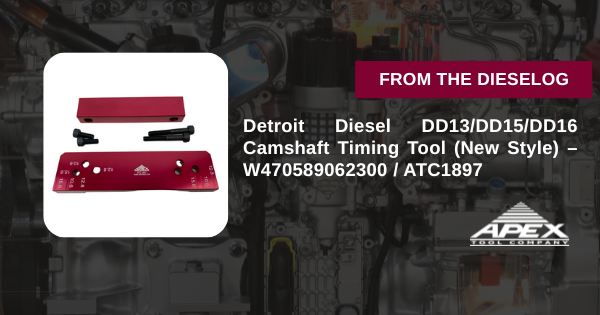

The ATC1897 / W470589062300 camshaft timing tool is a new-style, precision timing plate for Detroit Diesel DD13, DD15, DD16 and GHG17 engines built March 23, 2016 and later, designed to align updated camshafts and idler gears accurately during major engine service.
New-Style Timing for Updated Detroit DD Platforms
Modern Detroit Diesel DD13, DD15, DD16 and GHG17 engines built on or after March 23, 2016 use updated camshafts and idler gear designs that require a different timing strategy compared to earlier engines.[web:1] Trying to use legacy front-locking timing tools on these engines can lead to misalignment, poor valve events, hard starts, fault codes, and long-term durability issues.[web:1]
The ATC1897 Detroit Diesel Camshaft Timing Tool (equivalent to OEM W470589062300) is specifically engineered around these updated timing components, providing the correct plate and spacer configuration to lock the camshaft in the precise position required during overhaul and cylinder head service.[web:1]
Compatible Engines & Applications
- Detroit Diesel DD13 engines built March 23, 2016 and newer with updated camshaft and idler gear design.[web:1]
- Detroit Diesel DD15 engines built March 23, 2016 and newer.[web:1]
- Detroit Diesel DD16 engines built March 23, 2016 and newer.[web:1]
- GHG17 emissions platform engines that use the newer timing gear configuration.[web:1]
- Camshaft timing verification during engine overhaul, cam replacement, and cylinder head R&R.[web:1]
This tool replaces legacy DD cam timing tools when working on newer engines, eliminating timing errors caused by incompatible fixtures that do not match the updated cam and idler gear design.[web:1]
Key Features & Professional Benefits
New-Style Camshaft Support
Designed for updated DD13/DD15/DD16 and GHG17 cam and idler gear sets introduced in 2016, not for earlier engines with old timing hardware.[web:1]
OEM-Equivalent Timing Geometry
Mirrors the geometry of the Detroit Diesel W470589062300 timing plate so technicians can set cam timing to OEM specification with confidence.[web:1]
Prevents Valve Timing Errors
Locks the cam in the correct position during assembly so valve events match engineering design, preventing performance and emissions issues.[web:1]
Built for Shop Environments
Rugged steel construction is suited for repeated use in heavy-duty engine rebuild, fleet maintenance, and dealership shops.[web:1]
Why New-Style Timing Tools Are Mandatory
Using the wrong cam timing fixture on a modern Detroit DD engine can result in the cam being indexed several degrees off, which affects valve-to-piston clearance, turbo spool characteristics, emissions output, and fuel economy.[web:1] This kind of error can be difficult to trace once the engine is back in the truck and can lead to expensive rework.
The ATC1897 / W470589062300-style plate is engineered specifically to the geometry of GHG17-era camshafts and idler gear timing marks, giving technicians a dedicated fixture that matches the updated Detroit Diesel engineering standard.[web:1]
