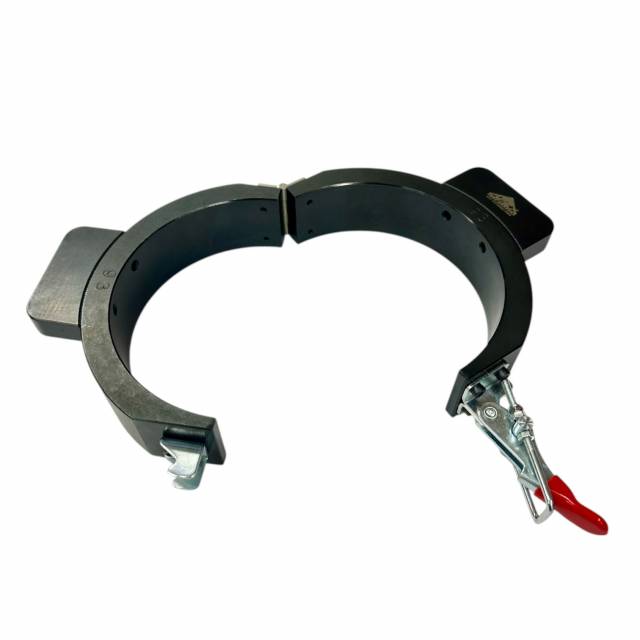

Rebuilding a Detroit Diesel DD15 or DD16 engine and trying to stuff large-bore piston assemblies into wet cylinder liners using adjustable sheet-metal band tools or universal pliers? You are taking a direct gamble on broken oil control rings, scored cylinder walls, and blown crankcase blow-by. The ATC W470589015900 / J47386 Precision Tapered Ring Compressor provides the exact circumferential pressure required to glide piston rings smoothly home into the liner without snagging or fracturing.

The Critical Physics of Large-Bore DD-Series Piston Ring Containment

On modern, high-efficiency Detroit Diesel DD15 and DD16 heavy-duty platforms, the piston assembly features ultra-tight manufacturing tolerances, complex multi-piece oil control rings, and specialized low-friction skirt coatings. During an in-frame overhaul or full block remanufacturing, driving the piston crown down into the wet cylinder sleeve requires uniform, 360-degree radial ring compression. Using flexible band-style ring compressors or pliers is a frequent cause of assembly failure. Flexible band clamps flex unevenly, allowing ring tips to pop out of their grooves right at the top chamfer of the sleeve liner. When a mallet taps the piston down against a cocked ring edge, the hard cast-iron or steel ring instantly snaps, or worse, gouges the precision-honed cross-hatch pattern inside the fresh cylinder sleeve wall. The ATC W470589015900 tool completely eliminates this risk. Precision-machined from solid tool steel with a smooth internal entrance taper, it compresses all ring lands dead-flat and square, allowing the entire piston crown to slide effortlessly straight into the liner bore.

• Precision DD15/DD16 Bore Geometry – Machined explicitly to match the exact piston diameter, ring land profiles, and liner chamfer steps of Detroit DD15 and DD16 engines.
• Direct OEM Factory Tool Interchange – Built custom to original equipment manufacturing dimensions, serving as a direct high-strength replacement for tool codes **W470589015900** and **J47386** / **J-47386**.
• 360-Degree Uniform Ring Closure – Solid, un-yielding cylindrical sleeve applies perfectly balanced radial pressure around the entire piston circumference.
• Zero Liner Scuffing Defense – Smoothly transitions rings from the compressed tool cavity directly into the cylinder liner sleeve chamfer without edge snagging.
• Industrial Heavy-Duty Toolroom Mass – Weighing a solid 6.00 lbs, this heavy-walled steel tool absorbs driver taps and maintains structural alignment pass after pass.

Stop Snagging Piston Rings. Command Flawless In-Frame Rebuild Precision.

The ATC W470589015900 / J47386 Detroit DD15 & DD16 Piston Ring Compressor is a vital investment for Freightliner and Western Star fleet overhaul bays, commercial heavy engine rebuilders, municipal transit repair stations, and independent diesel machine shops. Safeguard your new piston kits, prevent costly teardown reworks, and build with total mechanical confidence using Apex.

Technical Specifications

Technical Metric	Value / Fitment Reference Guidelines
Engine Family Compatibility	Detroit Diesel DD15 and DD16 Heavy-Duty Engines
Primary Operational Function	Uniform 360° ring compression and smooth piston-in-liner installation
OEM Special Tool Cross Reference	Direct functional equivalent for Detroit Diesel W470589015900 & Kent-Moore J47386
Tool Architecture Class	Precision-machined solid steel tapered sleeve compressor ring
Service Applications	In-frame rebuilds, full engine overhauls, engine remanufacturing
Total Package Shipping Weight	6.00 lbs (Heavy, vibration-damping solid tool steel mass)

---
