Accurate fuel seal installation is the difference between a successful rebuild and an engine that won't start. This guide covers the professional use of the W638589111500 on Detroit DD5 engines.

The Importance of Controlled Force

The high-pressure fuel seals in a Detroit DD5 are not "hammer-in" components. They require a steady, square press-fit to ensure the internal spring or lip isn't compromised during the installation process.

Phase 1-5: Prep & Seal Alignment

1. System Depressurization: Ensure the fuel system is fully depressurized before removing high-pressure lines.
2. Component Cleaning: Use lint-free cloths and electronics-safe cleaner on the seal bore. Contamination is the enemy of common-rail systems.
3. Seal Inspection: Verify the new seal is free of nicks or manufacturer defects.

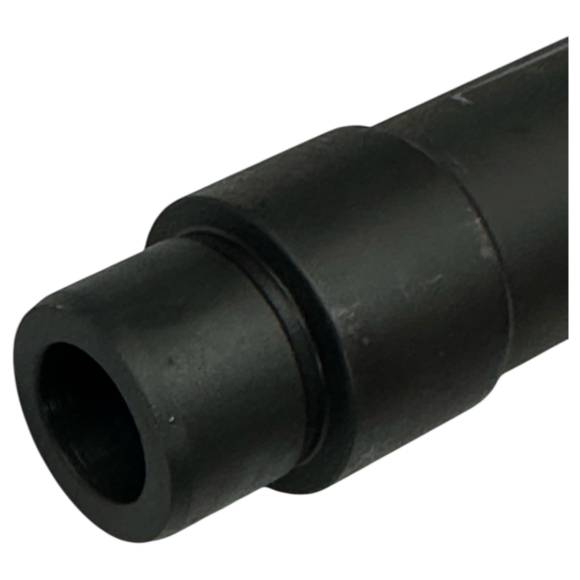

4. Tool Engagement: Place the seal onto the pilot end of the W638589111500 installer.
5. Initial Alignment: Align the installer perfectly square with the line port.

Phase 6-10: Seating & Verification

6. Steady Pressure: Apply force until the installer bottom-out feature makes contact with the housing.
7. Visual Verification: Remove the tool and inspect the seal for a perfectly flush, square seat.
8. Line Re-attachment: Reinstall high-pressure lines and torque to Detroit Diesel factory specs.
9. Leak Test: Prime the fuel system and perform a low-pressure leak check before starting the engine.
10. High-Pressure Test: Monitor fuel rail pressure via diagnostic software to ensure system stability.

Critical Warnings: Avoid These DD5 Service Errors

---
