Sealing the Fuel Path: Why the ATC J33840-4 / J33880 Kit is Mandatory for Series 60 Cylinder Heads
Fuel in the coolant or overheating issues under heavy load? The culprit is likely a failing injector cup seal. The ATC J33840-4 / J33880 Master Kit delivers the exact mechanical tracking required to pull and press Detroit 60 Series sleeves without marring casting bores.
The Critical Physics of Injector Cup Maintenance
On the Detroit Diesel Series 60 engine, injector nozzle sleeves (injector cups or tubes) serve as the vital thermal and physical barrier separating highly pressurized fuel injectors from surrounding engine block coolant jackets. Over millions of cycles, persistent heat variations degrade the sealing boundaries, allowing fluids to migrate. Trying to extract these thin-walled cups using loose pry picks, screwdrivers, or improvised hooks is a critical trap—one minor slip will permanently gouge the delicate copper or stainless steel seating bore inside the cast iron head. The ATC J33840-4 / J33880 kit bypasses this diagnostic risk. By integrating an application-targeted internal thread tap, a mechanical draw-remover, and a concentric driver-installer, it guides the replacement workflow on a perfect straight centerline axis.
- Dual-Material Adaptability – Purpose-built to handle both traditional soft brass cups and modern severe-duty stainless steel injector sleeves seamlessly.
- Direct Legacy Tool Match – Form-fit functional equivalent to original factory equipment standards **J33840-4** and **J33880**.
- Absolute Bore Protection – Concentric mechanical pilots guarantee that zero extraction or installation force scrapes against the critical head casting walls.

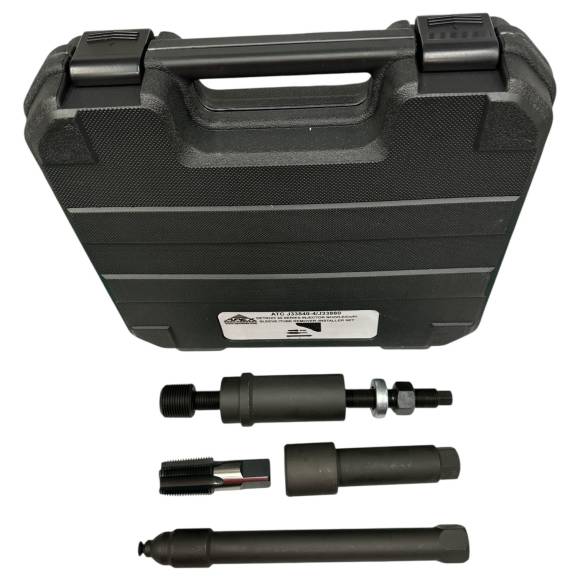

- Comprehensive Turnkey Architecture – Kit arrives loaded with a heavy-duty threading tap, a driver adapter, a tapped-cup mechanical remover, and a flat-seating installer plate.
- Shop-Grade Mass Profile – Weighing a solid 11.40 lbs, this premium tool array provides unyielding mechanical stability across intensive high-volume overhaul cycles.
Prevent Combustion Leaks. Command Your Top-End Overhauls.
The ATC J33840-4 / J33880 Injector Cup Service Kit is a fundamental requirement for independent diesel machine centers, long-haul freight line garages, and vocational truck rebuild yards. Stop gambling with unguided drifts—seal your fuel paths flawlessly with Apex.
Perfect Axial Alignment. Leak-Free Injector Sealing.
Buy the Detroit 60 Master Kit – $650.00Technical Specifications
| Technical Metric | Value / Compatibility Guidelines |
|---|---|
| Engine Platform Footprint | Detroit Diesel 60 Series (11.1L, 12.7L, 14L Variants) |
| Sleeve Material Capability | Brass & Stainless Steel Injector Nozzle Sleeves |
| OEM Interchange Profiles | Porta-Tool / Kent-Moore J33840-4 & J33880 Crosses |
| Brass Cup Reference Fitment | 240-1028, 240-1017, 8929078, 23501580 Styles |
| Stainless Cup Compatibility | 240-1039, 23538840, 240-1035, 23533148, 240-1045, 23534745, 23538829 Profiles |
| Shipping Weight Configuration | 11.40 lbs (Durable, shop-ready shipping profile) |
