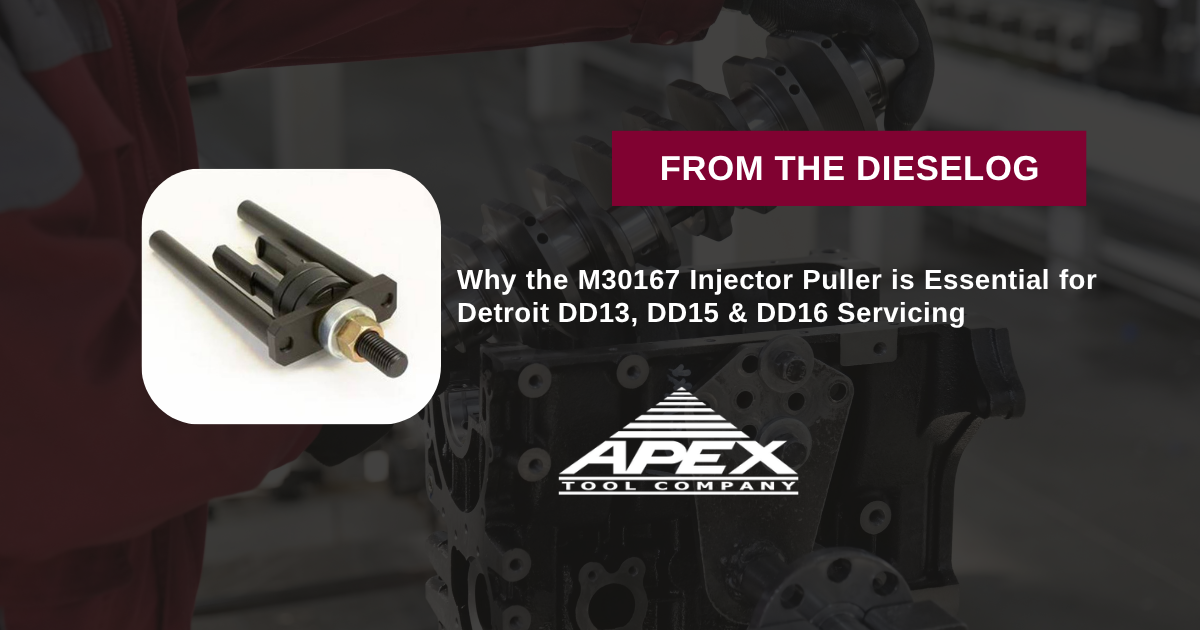

Why the M30167 Injector Puller is Essential for Detroit DD13, DD15 & DD16 Servicing
Eliminate sleeve damage and side-load stress with precision-machined mechanical vertical lifting fixtures.
Extracting carbon-baked fuel injectors from a heavy-duty Detroit Diesel DD13, DD15, or DD16 engine using pry bars, slide hammers, or makeshift jaws? You are taking a direct gamble on cracked copper sleeve bores, distorted injector bodies, and ruined cylinder head castings. The M30167 Injector Puller delivers smooth, coaxial mechanical lifting force to extract stuck injectors safely without damaging delicate top-end components.
The Critical Engineering of High-Pressure Common-Rail Injector Extraction
On modern Detroit Diesel HDE platforms—including workhorse DD13, DD15, and high-output DD16 powerplants—electronic unit injectors seat deep inside copper sleeve wells within the cylinder head. Over hundreds of thousands of heavy haul miles, extreme combustion heat, fuel varnish, and carbon blow-by fuse the injector body tightly into the sleeve bore. When an injector fails or requires servicing, removing it without specialized tools is a major workshop trap. Prying under the delicate solenoid body or using unguided slide hammers applies off-axis lateral shear stress. This side-loading easily cracks the brittle cast-iron cylinder head, distorts the precision-machined injector body, or ruptures the copper sleeve seal—allowing engine coolant to pour straight into the cylinder. The M30167 injector puller solves this high-risk procedure completely. Designed explicitly to latch securely onto DD-series injector hold-down points, its heavy-duty mechanical bridge draws the injector straight up along a perfectly parallel vertical axis line, leaving copper sleeves and head castings completely untouched.
- Comprehensive DD-Series Application Fitment – Specifically engineered to fit original injector hold-down geometry across Detroit Diesel DD13, DD15, and DD16 heavy-duty platforms.
- Direct OEM Factory Tool Interchange – Built custom to original manufacturing specifications, serving as a direct high-strength replacement for Kent-Moore tool code **J-47391** / **J47391**.
- Zero-Lateral Shear Force Defense – Lifts injectors squarely along a 100% vertical centerline, completely preventing side-load binding, sleeve damage, or head cracking.
- Preserves Copper Sleeve Integrity – Extracts caked fuel injectors without disturbing or lifting underlying copper water sleeve seals, eliminating coolant contamination risks.
- High-Mass Industrial Shop Construction – Weighing a solid 5.00 lbs, this dense, precision-machined steel puller resists flex under extreme break-away extraction torque.
Stop Prying Stuck Injectors. Command Flawless Top-End Diagnostic Accuracy.
The M30167 Detroit Diesel DD13/DD15/DD16 Injector Puller is an essential capital investment for Freightliner and Western Star fleet repair facilities, commercial diesel engine rebuilders, and mobile repair technicians. Prevent costly cylinder head damage, speed up injector swaps, and pull injectors with total mechanical certainty using Apex tools.
Coaxial Mechanical Leverage. Protect Detroit Cylinder Head Castings.
Order the M30167 Injector Puller – $539.51Technical Specifications
| Technical Metric | Value / Fitment Reference Guidelines |
|---|---|
| Engine Family Compatibility | Detroit Diesel DD13, DD15, and DD16 Heavy-Duty Engines |
| Primary Operational Function | Coaxial extraction of carbon-baked high-pressure fuel injectors |
| OEM Special Tool Cross Reference | Direct functional replacement for Kent-Moore J-47391 / J47391 |
| Part / Model Reference Number | M30167 (30167) |
| Construction Metallurgy | Precision-machined, high-tensile structural shop steel alloy |
| Total Package Shipping Weight | 5.00 lbs (Substantial, vibration-damping professional shop tool mass) |
