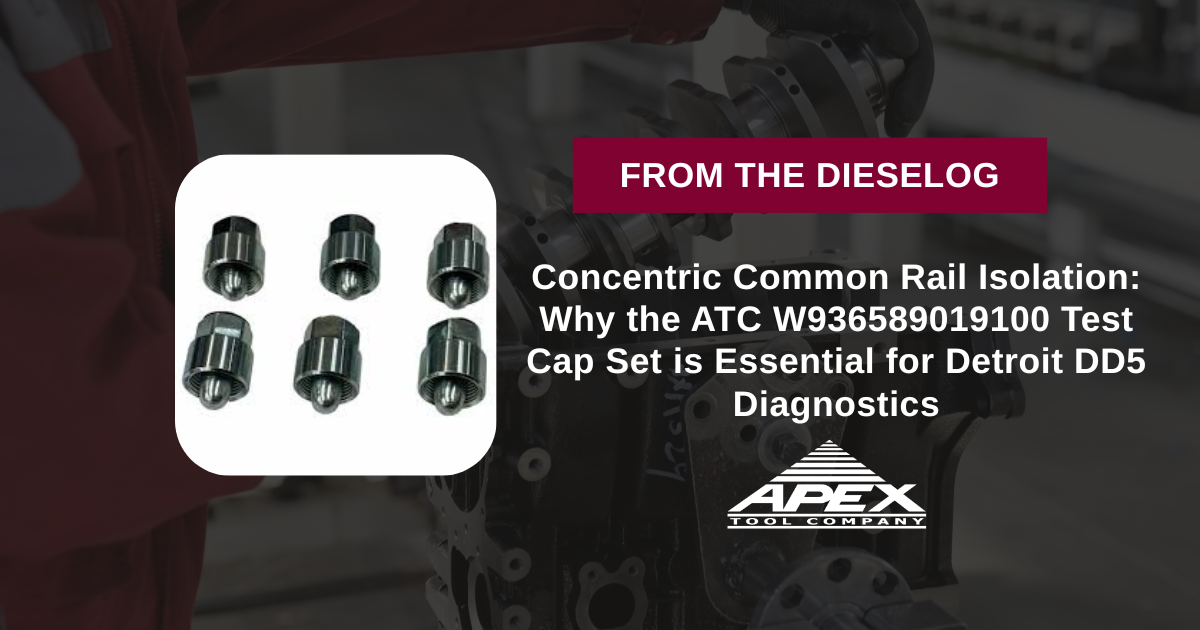

Troubleshooting low rail pressure codes, extended crank times, or hard-start complaints on a Detroit Diesel DD5 engine? Guessing whether a pressure drop stems from a leaking high-pressure pump, a faulty rail pressure control valve, or an internal injector body leak leads directly to misdiagnoses and thousands of dollars in unnecessary parts replacement. The ATC W936589019100 High Pressure Fuel Rail Test Cap Set provides six precision-machined steel caps to isolate common rail outlets under extreme pressure, allowing technicians to locate high-pressure fuel leaks with 100% diagnostic certainty.

The Critical Physics of Ultra-High Pressure Common Rail Isolation

Modern medium-duty commercial vehicles powered by the Detroit Diesel DD5 engine utilize high-pressure common rail (HPCR) fuel systems operating at pressures exceeding 30,000 PSI. At these extreme hydraulic forces, even a microscopic internal leak inside an electronic fuel injector control valve bleeds off critical rail pressure during engine cranking. When rail pressure falls below the minimum starting threshold, the engine control module (ECM) inhibits injector firing, resulting in long cranking times or complete non-start conditions. Because all injectors feed off a shared common rail, pinpointing which individual cylinder is leaking back to fuel return lines without dedicated test tools is virtually impossible. Utilizing improvised plugs, pinched fuel lines, or damaged old line fittings is extremely dangerous; makeshift caps can fail catastrophically under 30,000+ PSI, atomizing diesel fuel into a high-pressure skin-penetration hazard or fire risk. The ATC W936589019100 test cap set completely eliminates diagnostic guesswork and safety risks. Engineered to meet the exact specifications of the Detroit Diesel DD5 Essential Tool Program, this kit includes six precision-machined, high-tensile steel caps. By capping off individual rail outlets or blocking the entire rail simultaneously, technicians can run automated diagnostic pressure decay tests to systematically isolate failed components in minutes.

• Targeted Detroit DD5 Compatibility – Engineered specifically for isolating high-pressure common rail injector outlets across Detroit Diesel DD5 engine platforms.
• Direct OEM Factory Tool Interchange – Precision aftermarket replacement for Detroit Diesel Essential Tool part number **W936589019100** (W936589019100).
• Full 6-Cap Diagnostic Set – Includes six precision-threaded steel caps to seal all rail ports simultaneously or isolate individual cylinder lines sequentially.
• Withstands Extreme HPCR Pressures – Heavy-duty forged metallurgy delivers a 100% leak-free mechanical seal under maximum common rail injection pressures.
• Eliminates Unnecessary Component Replacement – Accurately distinguishes between high-pressure pump faults, rail relief valve leakage, and internal injector bypass.

Stop Guessing Low Rail Pressure Faults. Command Total Detroit DD5 Diagnostic Precision.

The ATC W936589019100 Detroit Diesel DD5 High Pressure Fuel Rail Test Caps (Set of 6) is an indispensable capital asset for commercial fleet shops, Freightliner dealership service bays, and mobile diesel technicians. Isolate fuel leaks, verify pump output, and test HPCR systems with complete mechanical authority using Apex tools.

Technical Specifications

Technical Metric	Value / Fitment Reference Guidelines
Target Engine Platform	Detroit Diesel DD5 Medium-Duty Commercial Engines
Primary Operational Function	High-pressure fuel rail outlet isolation and pressure retention leak testing
OEM Special Tool Cross Reference	Direct replacement for Detroit Diesel OEM # W936589019100
Part / Model Reference Number	ATC W936589019100 (ATCW936589019100 / W936589019100)
Kit Contents & Construction	Set of 6 precision-machined high-tensile forged steel test caps
Total Package Shipping Weight	0.80 lbs (Compact, high-strength shop diagnostic tool kit)

---
