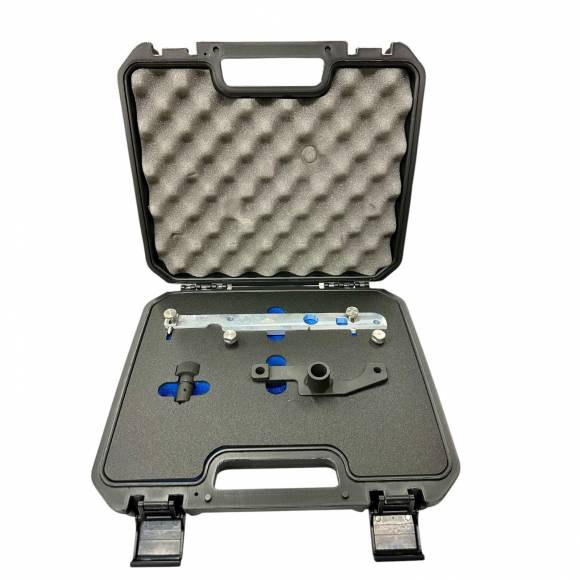

Servicing head gaskets or replacing a worn geartrain on a DD5 platform? Learn the strict mechanical protocol for locating true TDC and anchoring shafts using the ATCDDDA5MASTER fixture suite.

Why Loose Gear Alignment Causes Premature DPF Regeneration Loading

The valvetrain timing of an inline four-cylinder Detroit DD5 engine governs the precise millisecond windows when intake air charges enter and spent exhaust gases exit the combustion bowl. If a technician executes a top-end rebuild using unguided indexing marks or allows a minor camshaft shift, injection timing slips slightly out of optimal synchronization. While the engine might still crank and run without making metal-on-metal contact, this micro-lag causes incomplete fuel burn. The unburnt soot migrates down the exhaust manifold, overloading the Diesel Particulate Filter (DPF) and forcing the vehicle into continuous, highly inefficient parked regeneration cycles. Utilizing a rigid alignment platform like the ATCDDDA5MASTER kit ensures that every valve cycles dead-on with OEM parameters, optimizing tailpipe emissions and restoring raw engine performance.

The 5-Step Precision Timing Overhaul Sequence

1. Tear Down & Access Port Triage: Strip the overhead valve cover and secondary oil paths. Locate the primary timing inspection port plugs on the side of the engine block and flywheel housing area. Clean all surrounding metal areas thoroughly to remove carbon sludge and grit.
2. Locate True Top Dead Center (TDC): Bar the engine over slowly in its normal direction of rotation. Slide the precision-ground **W936589001500 TDC Locating Tool** directly into the block inspection bore. Continue rotating until the pin drops cleanly and locks into the precise timing slot on the crankshaft counterweight web.
3. Anchor the Rotating Crankshaft: Mount the heavy structural **ATCW936589014000 Crankshaft Holding Tool** onto the housing ring gear line. Bolt it down tightly to completely freeze the crankshaft in place, allowing you to comfortably handle heavy breakaway torque adjustments without slipping the engine off true TDC.
4. Index the Camshaft Profiles: Position the dual overhead cams so their factory alignment holes face upward. Lower the rugged **W936589002300 Camshaft Timing Tool** flatly centered over the flats of the shafts. The block should drop in effortlessly with zero resistance, locking both cams in a perfectly square position relative to the block deck.
5. Torque and Verify Dynamic Backlash: Execute your required camshaft gear torquing sequences using your preferred torque wrench. Once the fast links are locked down, back out all the tracking pins and remove the ATCDDDA5MASTER fixtures. Rotate the crank manually two full passes, re-insert the pins, and verify that all three timing elements drop back into index smoothly, proving zero timing migration.

---
