In the world of high-efficiency common-rail engines like the Detroit Diesel DD5, a fraction of a degree is the difference between peak power and a "Check Engine" light. The W936589001500 is the only way to lock TDC with absolute certainty.

The High Stakes of DD5 Engine Timing

Modern common-rail diesel engines like the Detroit DD5 rely on ultra-precise mechanical timing to synchronize the camshaft, high-pressure fuel pump, and valves. Relying on visual marks or a "close enough" eyeball measurement is a risk to the engine's internal components. The W936589001500 provides a positive mechanical lock, ensuring the crankshaft is physically held at Top Dead Center (TDC).

• Absolute TDC Accuracy – Mechanically engages the flywheel indexing feature for 100% accurate positioning.
• Zero Engine Rotation – Prevents accidental movement of the crankshaft while torquing camshaft bolts or adjusting the valve train.
• Emissions Compliance – Ensures the mechanical foundation of the engine is set to factory specs for optimal combustion and lower exhaust soot.
• Professional Shop Standard – Eliminates repeatable errors across different technicians, ensuring consistent build quality.
• Ultra-Durable Alloy — Precision-machined from high-strength steel to resist bending or shearing during heavy-duty use.

What is the W936589001500 Tool?

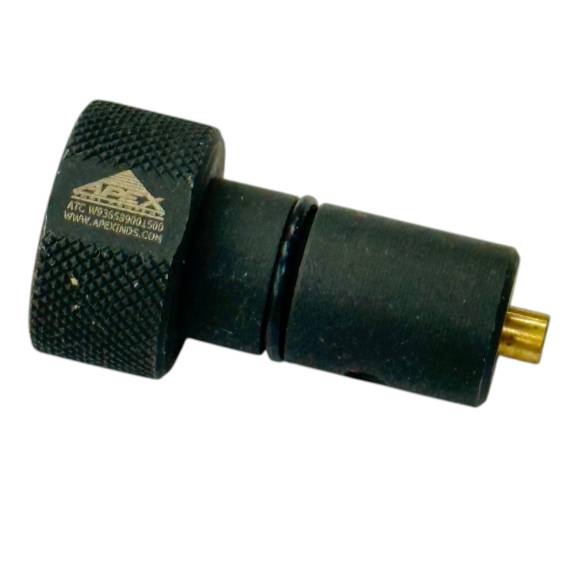

The W936589001500 TDC Locating Tool is an application-specific crankshaft positioning pin. It is designed to slide into the factory timing port of the DD5 engine and seat into the flywheel notch, providing a rock-solid reference point for every timing procedure.

---
