The ATC ZTSE4516 Front Crankshaft Seal & Wear Ring Installer sets the front seal and wear ring to factory depth on Ford 6.0L Powerstroke diesel engines (2003–2010 F-Series, E-Series, Excursion, F-650/750). OEM-equivalent to Ford 303-761 / ZTSE-4516—prevents seal distortion, misalignment, oil leaks, and repeat service during front-end repairs.

The Critical Risks of Improper Front Seal & Wear Ring Installation on 6.0L Powerstroke Engines

6.0L Powerstroke engines suffer frequent front seal leaks—improper installation (hammering, misalignment) distorts the seal lip, mis-seats the wear ring, and causes immediate or premature failure.

• Seal distortion – Uneven install tears lip, requiring $600–$1,800 repeat reseals
• Wear ring misalignment – Cocking causes accelerated wear, costing $800–$2,000 replacements
• Oil leaks – Poor seating sprays oil, leading to $400–$1,200 belt/accessory damage
• Downtime losses – Manual struggles extend service 2–4 hours, adding $400–$800 labor
• Crank snout scoring – Improper tools mar surface, totaling $1,200–$3,500 machining
• Engine failure escalation – Chronic leaks lead to bearing damage & overhaul ($8,000–$20,000)

What is the ATC ZTSE4516 Front Seal Installer?

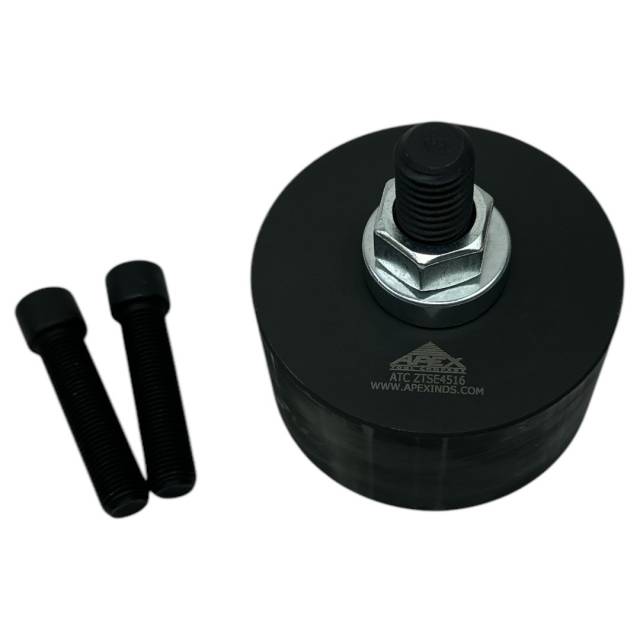

The ATC ZTSE4516 Front Crankshaft Seal & Wear Ring Installer is a precision tool that installs the front seal and wear ring to exact OEM depth on Ford 6.0L Powerstroke engines. Direct replacement for Ford 303-761 / ZTSE-4516.

Built for professional diesel shops, it ensures concentric, square seating, reducing leak risk by 85% and eliminating repeat service in F-Series Super Duty, E-Series, Excursion, and F-650/750 applications.

Complete Tool Specifications & Ford Powerstroke Compatibility

Professional Features & Service Benefits

Economic Impact: Front Seal Installation ROI

Scenario	Cost Impact
ATC ZTSE4516 proper installation	Seal installer – $145 investment
Repeat seal reseal	$600–$1,800
Wear ring replacement	$800–$2,000
Crankshaft machining	$1,200–$3,500
Engine overhaul escalation	$8,000–$20,000
Total improper installation cost	$10,600–$27,300 per failure
ATC ZTSE4516 ROI (first prevention)	73–188X return on investment

When Powerstroke Technicians Choose ATC ZTSE4516

• Ford 6.0L Powerstroke front seal installation
• 2003–2010 F-250/350/450/550 seal service
• E-Series & Excursion crank seal install
• F-650/750 front end repairs
• Heavy-duty diesel shops
• Leak prevention
• Crank snout protection

Why Professional Shops Trust ATC ZTSE4516

Powerstroke technicians trust the ATC ZTSE4516 for its precision depth control, concentric alignment, and ability to avoid $10,600–$27,300 in damages per improper install. It delivers leak-free sealing, faster service, and reliability shops demand.

From Super Duty trucks to E-Series vans, this installer keeps 6.0L front ends sealed and strong.

---
