Precision is the heartbeat of a diesel engine. The JDG254A is the professional-grade timing pin designed to synchronize the crankshaft, camshaft, and injection pump on John Deere 4039, 4045, 6059, and 6068 engines.

Why Mechanical Timing Synchronization is Non-Negotiable

On the legendary John Deere 4.5L and 6.8L platforms, timing isn't just about performance—it's about protecting your investment. These engines rely on precise mechanical synchronization. If the injection pump is "timed by eye," you risk a host of expensive issues.

• Hard Starting & Rough Idle – Even a fraction of a degree off-center causes delayed combustion.
• Excessive White Smoke – Improperly timed injection leads to unburnt fuel and high emissions.
• Loss of Horsepower – Peak cylinder pressure must occur at the exact right moment in the piston stroke.
• Positive Locking – The JDG254A physically interfaces with factory timing points, making it impossible for the gear train to slip during torque-down.
• OEM Reference Quality — Specifically machined to match John Deere factory specs for 4039, 4045, 6059, and 6068 engines.

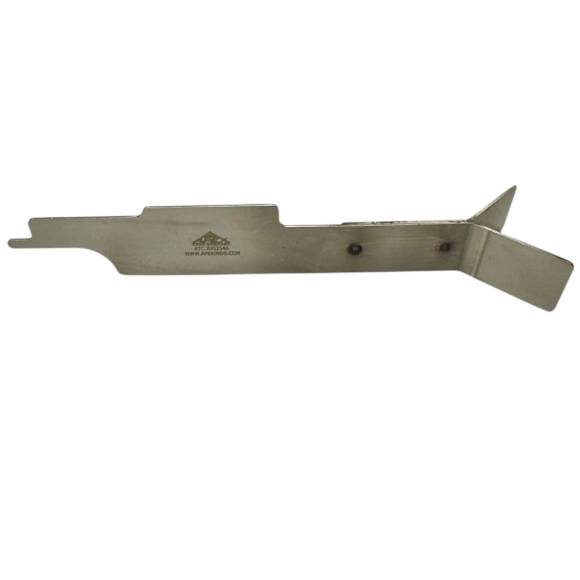

What is the JDG254A Engine Timing Tool?

The JDG254A Timing Pin is an essential reference tool for any technician performing an injection pump swap, camshaft installation, or full engine rebuild. It provides the positive positioning needed to ensure your gear train is 100% indexed to Top Dead Center (TDC).

Technical Specifications

---
