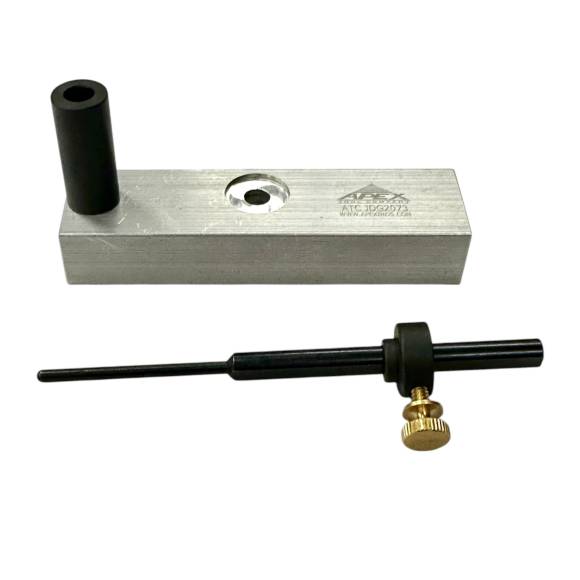

Rough idling and uneven power delivery often trace back to one thing: an uncalibrated fuel rack. Learn how to use the JDG2073 to restore your engine to factory perfection.

Why Rack Position Matters

On the John Deere 2.4L diesel, the fuel control rack manages the internal position of the injection system. If the rack isn't measured and set correctly during an engine build or fuel pump service, the results are immediate: excessive exhaust smoke, poor throttle response, and potential engine damage from uneven thermal loading across the cylinders. The JDG2073 provides a repeatable reference point that hand-measuring simply cannot match.

The Calibration Procedure

1. Clean the Rack Interface: Ensure the measurement point is free of debris to allow the JDG2073 to seat perfectly.
2. Tool Installation: Attach the JDG2073 to the designated rack measurement point on the injection pump/system.
3. Zero-Point Verification: Check the baseline position against John Deere service manual specifications.
4. Measure Travel: Actuate the rack through its full range of motion. The JDG2073 allows you to track precise movement to ensure smooth operation without binding.
5. Final Adjustment: Lock the fuel system into place once the measurement matches the required calibration for your specific engine application.

---
