Removing Seized John Deere Injector Sleeves: JDG10631 Procedure

By Blogdashfdhd Adminvsbgfsf •
Removing Seized John Deere Injector Sleeves: JDG10631 Procedure

Accurate sleeve removal is the difference between a routine injector service and an expensive cylinder head replacement. This guide details the 10-phase procedure using the JDG10631 puller.

John Deere injector sleeve extraction process using JDG10631

Why Mechanical Pullers Beat Improvised Methods

The injector sleeves on 9.0L John Deere engines are press-fit with extremely tight tolerances. When carbon builds up around the nozzle tip, the friction increases exponentially. The JDG10631 puller uses a threaded mechanical advantage to apply vertical lift, preventing the "tilting" that causes head cracks.

Phase 1-5: Setup & Tool Engagement

  1. Drain the Coolant: Always drain the cooling system below the level of the cylinder head to prevent coolant from entering the combustion chamber.
  2. Remove the Injector: Extract the EUI injector following OEM procedures.
  3. Clean the Cup: Clear any loose carbon from the internal diameter of the sleeve to ensure tool engagement.

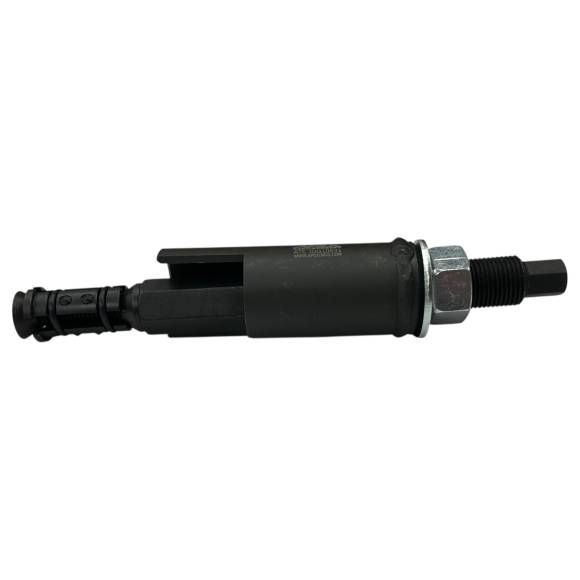

  4. Insert Puller: Lower the JDG10631 into the injector sleeve.
  5. Expand & Grip: Tighten the internal mandrel to securely grip the bottom of the sleeve.

Phase 6-10: Extraction & Bore Care

  1. Apply Tension: Rotate the top nut of the puller against the support bridge to begin extraction.
  2. Controlled Lift: Continue until the sleeve breaks free from the press-fit.
  3. Bore Inspection: Use a bore scope or light to check the cylinder head seating area for pitting or corrosion.
  4. Clean the Seat: Use a specialized cleaning brush to remove all carbon from the head bore before installing a new sleeve.
  5. Prep for Install: Ensure the bore is dry and free of oil before seating the new cup.

Critical Warnings: Avoid These Engine Service Disasters

INJECTOR SERVICE HAZARDS:

  • ❌ Coolant in Cylinder: If you don't drain the coolant first, removal of the sleeve WILL flood the cylinder, causing hydrostatic lock on startup.
  • ❌ Reusing Sleeves: Injector sleeves are one-time-use items. Never reinstall a pulled cup.
  • ❌ Impact Tools: Do not use an impact wrench on the JDG10631 puller; the shock can shatter the sleeve or damage the tool threads.

Master the 9.0L Overhaul. Shop JDG10631.

Order Online – $325.00

Discussion (0)
