Master the Detroit Diesel DD5 fuel system. Learn why the W936589013300 is a non-negotiable for professional diesel techs.

The Hidden Cost of "Hand-Installing" O-Rings

Many technicians assume that a small O-ring can be rolled onto an injector by hand. However, the DD5 injector's landings have precise edges. Rolling a seal over these edges creates "spiral failure" or small flat spots that may not leak immediately but will fail under the thermal cycles of a working engine. Using the W936589013300 installer eliminates these variables, protecting your shop from costly comebacks and unhappy customers.

DD5 Injector Seal Best Practices

1. Cleanliness is Key: Ensure the injector body and the W936589013300 tool are completely free of debris before use.
2. Lubrication: Use a light coat of clean engine oil or specified assembly lube on the O-ring and the tool surface.

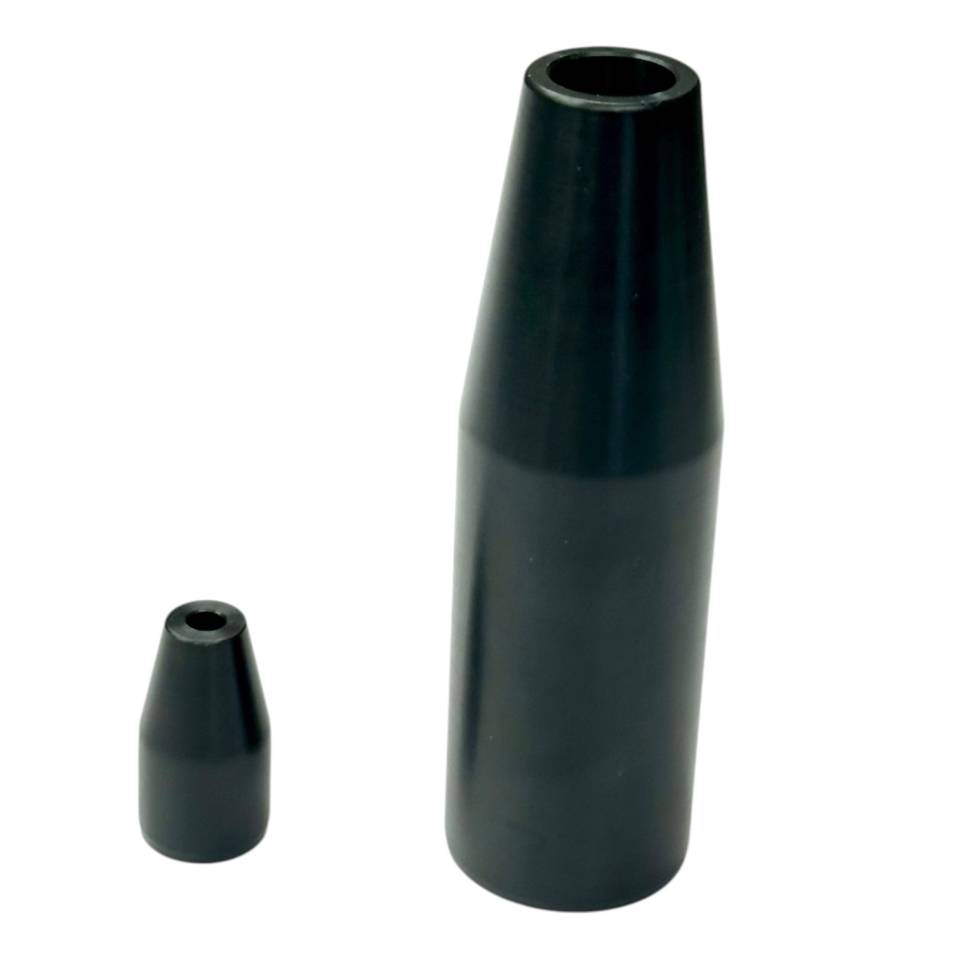

3. The Smooth Slide: Place the W936589013300 over the injector and slide the O-ring down the tapered guide until it clicks into the groove.
4. Visual Verification: Rotate the injector 360 degrees to ensure no twisting occurred during seating.

Speed and Reliability

---
