Tech Guide: Calculation & Alignment Metrics for Torque Adapters
Did you know a torque adapter can alter your wrench's reading? Learn how to position and compute settings using the ATC CAA0270 kit.
The Physics of Lever-Arm Alterations
A torque wrench works by measuring force applied across a specific length (the distance from the center of the drive plug to the center of the grip handle). When you attach a torque adapter from the ATC CAA0270 kit straight out from the end of the wrench, you effectively lengthen that leverage arm. This means the actual torque delivered to the fastener will be higher than the value shown on the scale. To bypass complex recalculated mathematics entirely, professionals employ a golden rule: align the adapter at exactly 90 degrees relative to the torque wrench shaft. By keeping the adapter perpendicular, the effective length of the primary handle remains completely unchanged, ensuring the dialed scale value matches the final torque perfectly.
The 5-Step Precision Torque Workflow

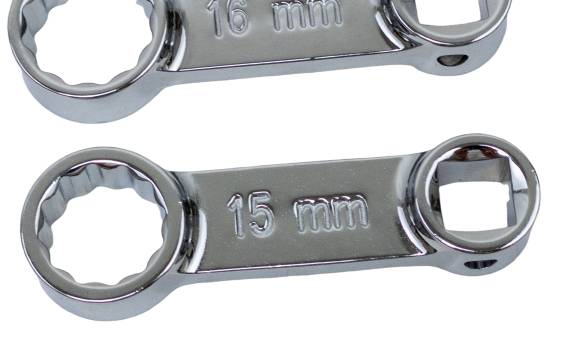

- Analyze the Fastener Interface: Clean the target fastener to remove oils and rust. Select the matching metric adapter from the blow-molded case (sizes range from 10mm up to 19mm).
- Set the Operating Angle: Push the 3/8" square drive of your torque wrench into the adapter receiving slot. Adjust the alignment so that the adapter body is locked at a strict 90-degree angle to the wrench beam.
- Confirm Mathematical Lengths (If Straight): If your application requires running the adapter inline (extending straight out), look up the standard conversion formula: Wrench Setting = (Target Torque × Wrench Length) / (Wrench Length + Adapter Length) to calculate your adjusted value.
- Engage with Center Pressure: Slide the box-end opening of the ATC CAA0270 adapter completely over the fastener head. Ensure full engagement with the hex to prevent rounding. Keep one hand stabilizing the drive head pivot while applying force smoothly to the handle.
- Smooth Pull Execution: Pull the torque wrench handle with a slow, continuous stroke until the audible click or digital alert triggers. Avoid jerking or sweeping movements to maintain premium measurement accuracy.
CRITICAL FORMULA NOTE:
When running torque adapters perfectly parallel (straight out) from the drive head, you are adding roughly 2 inches to the wrench lever length. Failing to compute an adjusted value will cause you to over-torque the fastener by up to 15-20%, risking a broken bolt inside a critical assembly casting. When in doubt, stay at 90 degrees.
