Paccar MX-13 Crankshaft Seal Procedure: ATC 1453185 Professional Guide

Detailed crankshaft seal procedure for Paccar MX-13 using ATC 1453185 kit.

ATC 1453185 Paccar MX-13 crankshaft seal installation procedure step-by-step

By Blog Admin • February 02, 2026 • Posted in Diesel Tools, Products

This 12-phase procedure uses the ATC 1453185 kit to remove and install front/rear crankshaft seals on Paccar MX-13 engines. Ensures concentric placement and correct depth for leak-free performance.

Introduction: Essential Crankshaft Seal Service for Paccar MX-13 Engines

Proper seal installation in MX-13 prevents oil loss and contamination. The ATC 1453185 kit applies controlled force—critical for durable repairs.

Phase 1-3: Preparation & Old Seal Removal

Secure engine and drain oil – Safety stands
Remove accessories – Access crank
Inspect seal area – Note damage
Use remover tool – Even pull
Clean crank surface – Remove debris

Phase 4-6: New Seal Preparation & Install

Lube new seal – Even coating
Position on installer – Align square
Apply even pressure – Controlled force
Seat to correct depth – Flush or spec
Verify concentricity – No cocking
Repeat for front/rear – Consistent

Phase 7-9: Reassembly

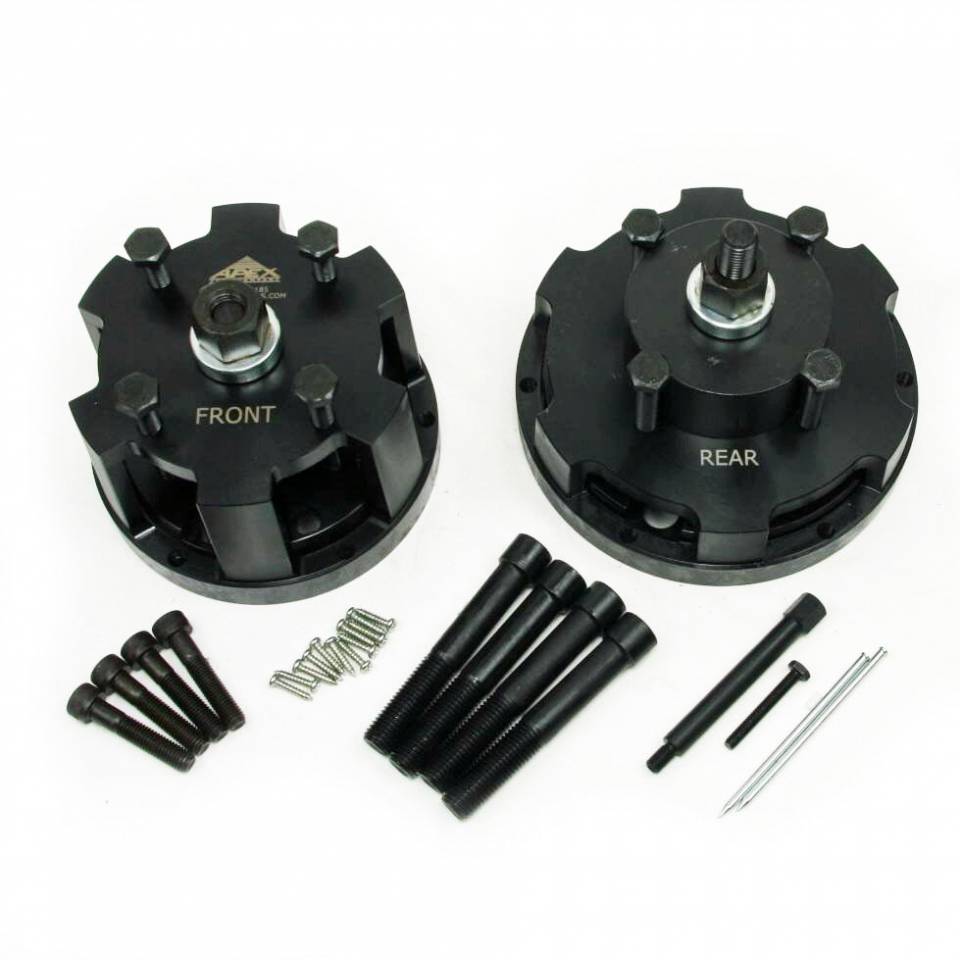

CRITICAL: ATC 1453185 Installation Setup

Reinstall components – Torque spec
Refill oil – Check level
Prime system – No air
Start idle test – Monitor leaks
Document install – Depth/torque
Clean tools – Store in box

Phase 10-12: Testing & Finalization

Road test load – Verify no drip
Final inspection – Clean/no leaks
Schedule follow-up – At 1,000 miles
