DD5 Camshaft Timing: A Step-By-Step Precision Guide
Accuracy in engine assembly is what separates a dealership-quality repair from a roadside breakdown. Learn the professional way to time a Detroit DD5.
Why Proper Alignment is Non-Negotiable

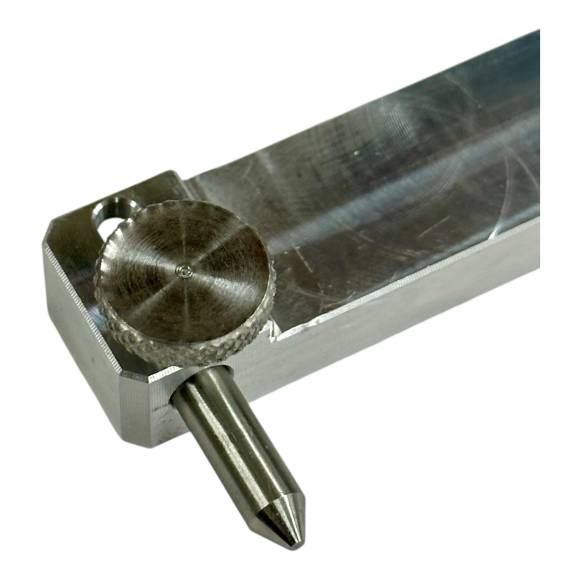

The camshaft timing on a DD5 directly controls the opening and closing of valves relative to the piston position. If the timing is off by even one gear tooth, you risk catastrophic internal collision. The W936589002300 tool is designed to hold the camshaft in its indexed position while the gear train is tightened, ensuring that your settings stay true during assembly.
The Timing Procedure Checklist
- Lock TDC: Use the crankshaft positioning pin to lock the engine at Top Dead Center on cylinder #1.
- Position Camshaft: Place the camshaft into the head, ensuring visual marks are roughly aligned.
- Install W936589002300: Interface the tool with the camshaft to lock it into the precise factory indexing position.
- Gear Train Assembly: With the camshaft held securely by the tool, install and torque the camshaft gears.
- Verification: Remove the tools, rotate the engine manually, and re-insert the W936589002300 to verify the timing hasn't shifted.
PRO-TIP:
Always perform a manual 360-degree rotation of the crankshaft before attempting to start the engine. If the W936589002300 re-inserts perfectly at TDC after rotation, your timing is solid.
