Replacing a steering gear box or overhauling worn linkages? Learn the professional technician workflow for separating pitman arms using the ZTSE4439 fixture.

The Hidden Dangers of Impact Hammer Shock Waves

It is common to see technicians attempting to shake loose a stubborn pitman arm by striking the component casting repeatedly with an air hammer or sledge. While the vibration may eventually crack the corrosion boundary, it propagates severe energy paths directly up the sector shaft into the steering gear assembly. This impact brute force dimples the internal bearing races, deforms internal valve seals, and often creates microscopic fracturing along the sector shaft splines. When high-pressure hydraulic load is applied later, these compromised points develop massive leaks or complete handling failures. Using a solid-jaw puller like the ZTSE4439 maintains an unyielding static tension, separating components quietly and precisely.

The 5-Step Heavy Spline Separation Protocol

1. Tear Down & Clean: Back off the primary sector shaft retaining nut completely. Clean away thick rust scale, dirt, and road grease from the base of the splines using a high-stiffness wire brush.

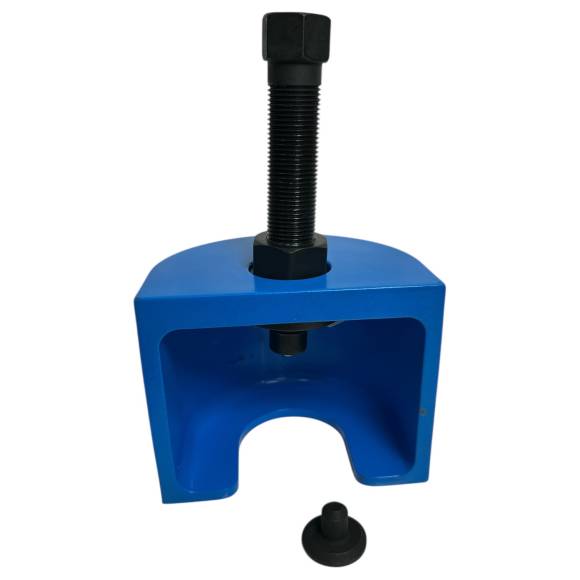

2. Index the ZTSE4439 Puller Jaws: Slide the rigid pulling arms of the ZTSE4439 completely behind the heavy shoulder casting of the pitman arm. Verify the landing surfaces rest flatly against the component to maximize contact zone area.
3. Align the Forged Center Screw: Center the primary pressure screw directly on the center dimple of the sector shaft. Hand-tighten the bolt to ensure the load alignment path is completely inline and perpendicular to the arm face.
4. Apply Controlled Static Force: Turn the primary driving bolt clockwise using a high-leverage manual breaker bar. The unyielding mechanical pull will draw the arm straight off the splines with a smooth, progressive pop.
5. Inspect the Splines: Clean old scale out of the sector shaft valleys. Check for any twisted splines or deep cracks before lubricating the assembly and sliding the new arm home into exact timing alignment.

---
