Step-by-Step: Installing John Deere 12.5L Injector Sleeves Safely
Avoid the nightmare of coolant-fuel mixing. Learn the professional procedure for using the JDG981 kit on John Deere heavy-duty cylinder heads.
The Danger of Improvised Methods

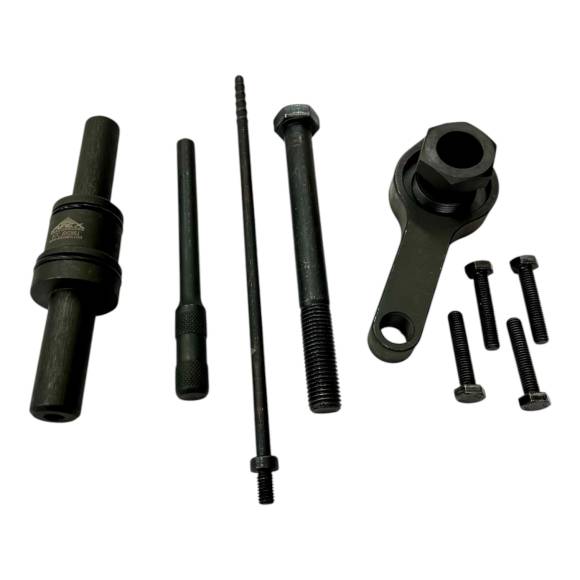

Many shops attempt to drive injector sleeves using standard sockets or generic drifts. This is a critical error. The thin-walled copper or stainless sleeves used in 10.5L and 12.5L engines are easily crushed or flared if the force is not perfectly centered. The JDG981 kit eliminates this risk by using a piloted driver that centers itself within the bore.
The Professional Installation Checklist
- Bore Preparation: Use a precision brush to remove all traces of old sealant, carbon, or corrosion from the cylinder head bore.
- Sleeve Inspection: Verify the new sleeve is free of nicks or debris. Apply the recommended retaining compound if specified by the JD service manual.
- Tool Assembly: Mount the sleeve onto the JDG981 driver, ensuring the pilot is fully engaged.
- The Press: Using a controlled press or driver, seat the sleeve until the tool flange meets the cylinder head surface. This ensures the correct mechanical depth.
- Final Verification: Inspect the lower sealing ring to ensure a uniform press and zero distortion of the sleeve mouth.
Why Techs Trust Apex Industrial
PRO-TIP:
Injector sleeve leaks are often misdiagnosed as cracked heads. By using the JDG981 to ensure a perfect installation, you eliminate variables and guarantee a professional-grade cylinder head overhaul.
