Technician’s Guide: Using the JDG970B for Valve Train Service
By Blogdashfdhd Adminvsbgfsf •
Master the removal and installation of John Deere rocker shafts. This guide highlights the critical steps to using the JDG970B lifting fixture safely and efficiently.
Why the JDG970B is Essential for Diesel Overhauls
On large John Deere engines, the rocker arm assembly is the vital link between the camshaft and the valves. Misalignment during reinstallation can lead to catastrophic engine damage. The JDG970B ensures that the assembly is lowered perfectly parallel to the cylinder head, preventing uneven stress on the mounting bolts and shaft.
Removal Procedure Checklist
- Preparation: Rotate the engine to the specified position (usually TDC for cylinder 1) to relieve spring pressure where possible.

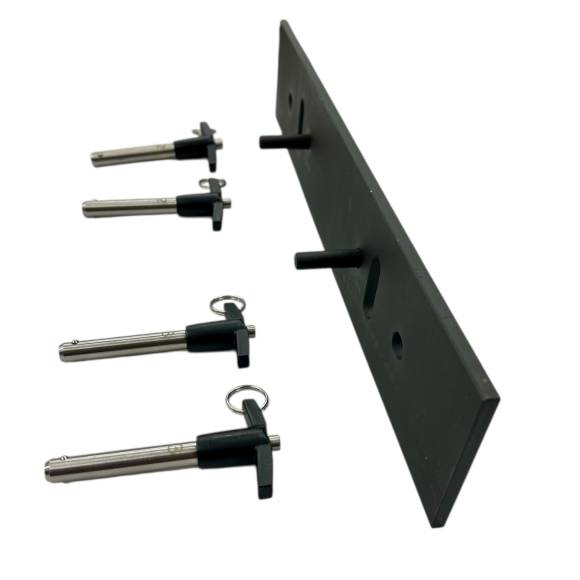

- Attachment: Secure the JDG970B fixture to the designated lifting points on the rocker shaft.
- Bolt Removal: Loosen the rocker shaft mounting bolts in the sequence recommended by the JD service manual.
- Controlled Lift: Use the fixture handle to lift the entire assembly clear of the pushrods.
- Storage: Keep the assembly on the fixture or a clean, flat surface to prevent warping of the shaft.
