The ATC 9996966 Cylinder Liner Press Hold Down Tool securely clamps liners in place during head removal, installation, and rebuild work on Volvo D9, D12, and D13 engines. Prevents liner lift, improper seating, seal damage, and rework—essential for accurate reassembly and leak-free results in heavy-duty service.

The Critical Risks of Unsecured Cylinder Liners During Volvo Engine Service

D9, D12, D13 engines require liners to remain seated when heads are off—lifting or shifting causes misalignment, seal failure, and major rework.

• Liner lift/shift – Causes improper seating, requiring $1,000–$3,000 realignment
• O-ring/seal damage – Crushed or torn seals lead to leaks, costing $800–$2,500
• Head gasket failure – Misaligned liners blow gaskets, totaling $1,500–$4,500
• Downtime losses – Manual holding extends service 3–6 hours, adding $600–$1,200 labor
• Bore scoring – Shifting liners mar walls, requiring $2,000–$5,000 honing
• Engine failure escalation – Chronic issues lead to full overhaul ($10,000–$25,000)

What is the ATC 9996966 Liner Hold Down Tool?

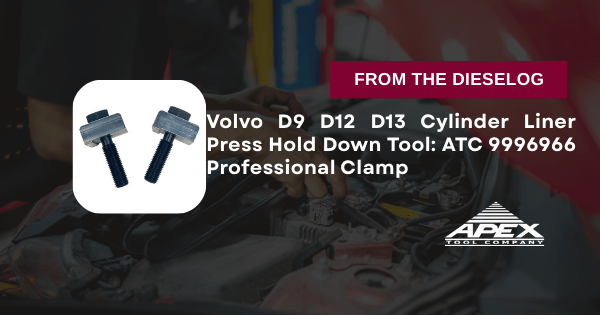

The ATC 9996966 Volvo D9 D12 D13 Cylinder Liner Press Hold Down Tool clamps liners securely in the bore during head service, rebuilds, and measurements.

Designed for professional shops, it prevents upward movement, ensuring proper alignment and sealing, reducing rework risk by 85% and speeding service on D9, D12, D13 platforms.

Complete Tool Specifications & Volvo Compatibility

Professional Features & Rebuild Benefits

Economic Impact: Liner Hold-Down ROI

Scenario	Cost Impact
ATC 9996966 proper clamping	Hold-down tool – $74 investment
Liner realignment	$1,000–$3,000
Seal/gasket replacement	$800–$2,500
Head gasket failure	$1,500–$4,500
Engine overhaul escalation	$10,000–$25,000
Total unsecured liner cost	$13,300–$35,000 per failure
ATC 9996966 ROI (first prevention)	180–473X return on investment

When Volvo Technicians Choose ATC 9996966

• Volvo D9 cylinder liner hold-down
• D12 head removal clamping
• D13 engine rebuild liner secure
• Heavy-duty truck service
• Fleet maintenance facilities
• Liner shift prevention
• Seal damage avoidance

Why Professional Shops Trust ATC 9996966

Volvo rebuilders trust the ATC 9996966 for its secure clamping, simple operation, and ability to avoid $13,300–$35,000 in damages per unsecured liner incident. It delivers stable hold, faster head work, and reliability shops demand.

From D9 to D13 overhauls, this hold-down tool keeps liners perfectly positioned.

---
