Volvo/Mack Crankshaft Rotation Procedure: 85109245 Guide
By Blogdashfdhd Adminvsbgfsf •
Follow this professional 10-phase procedure using the 85109245 barring tool to safely rotate Volvo D11/D13 and Mack MP7/MP8 engines for timing and service.
Introduction: Precision Barring for Heavy-Duty Engines
The 85109245 tool is essential for rotating the crankshaft from the front of the engine, allowing for single-degree adjustments required for camshaft phasing and Top Dead Center (TDC) verification.
Phase 1-3: Preparation & Access
- Safety Check: Ensure the ignition is OFF and the battery is disconnected.
- Access the Front Housing: Remove any covers or debris blocking the crank pulley hub.
- Inspect Tool Seats: Clean the bolt pattern or adapter boss where the 85109245 will engage.
Phase 4-7: Engagement & Rotation

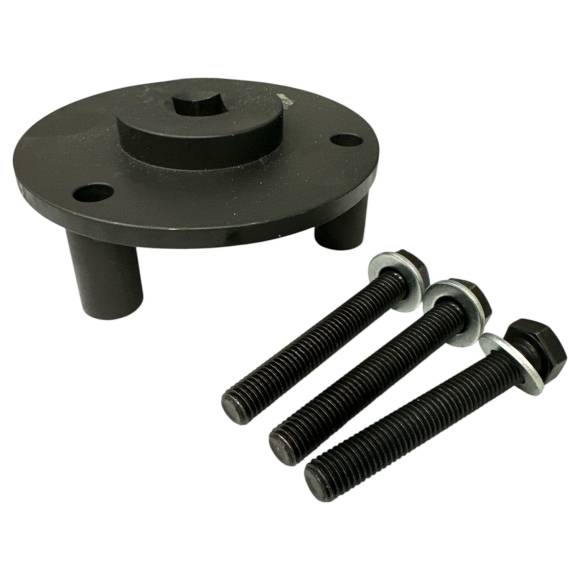

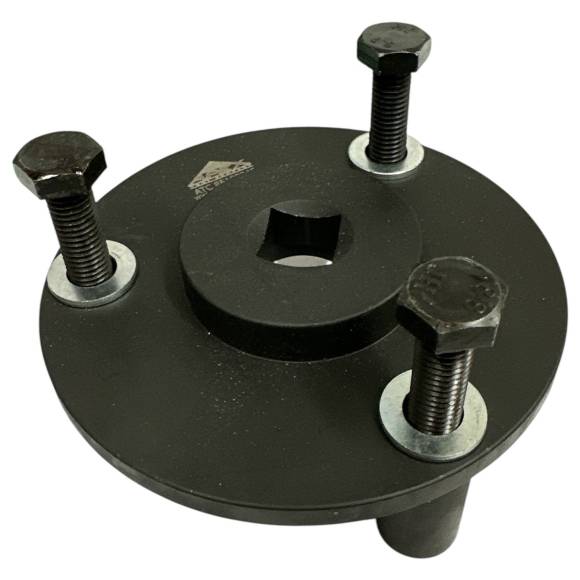

- Seat the 85109245: Align the tool pins/lugs with the crank pulley hub.
- Verify Proper Fit: Ensure the tool is flush to prevent slippage during high-torque rotation.
- Insert Drive Tool: Connect a standard 1/2" or 3/4" drive handle as required.
- Controlled Rotation: Turn slowly clockwise (or per service manual) to reach desired alignment.
Phase 8-10: Inspection & Removal
FINAL VERIFICATION STEPS
- Check Timing Marks: Verify alignment with the tool still engaged.
- Ease Tension: Slightly back off pressure before removing the barring tool.
- Final Cleanup: Remove tool, re-install covers, and inspect hub for any debris.
Critical Warnings: Avoid These Common Mistakes
SERVICE HAZARDS:
- โ Improper Seating: Rotating before the tool is flush will shear alignment pins.
- โ Excessive Torque: Never use a long breaker bar to force a seized engine.
- โ No Storage Protection: Damage to the toolโs surfaces will lead to future hub damage.
Master Your Volvo & Mack Engine Timing Today. Safe. Precise. Reliable.
Get 85109245 โ $175.00
