Why the ATC W936589019100 Cap Set is Mandatory for Detroit DD5 Diagnostics
Eliminate high-pressure diagnostic guesswork and audit electronic injectors cleanly with leak-free mechanical block-off steel caps.
Chasing an elusive hard-start condition, low-pressure rail codes, or long crank times on a mid-duty Detroit DD5? Don't sentence a complete set of high-value common-rail injectors to the scrap bin on a hunch. The ATC W936589019100 Master Fuel Rail Test Cap Set provides the precise mechanical block-off required to isolate individual fuel loops and verify pressure decay lines instantly in real-time.
The Crucial Physics of Common-Rail Pressure Retention
Modern, high-efficiency Detroit Diesel DD5 commercial engines deploy extreme high-pressure common-rail injection architectures to manage precise combustion metrics. When a microscopic internal bypass leak develops within an electronic injector control valve or past a fuel rail-to-injector mating joint, the system struggles to retain critical baseline fuel pressure. Attempting to troubleshoot this condition by reading general computer scanner data is an absolute trap. A drop in accumulative rail pressure triggers broad diagnostic fault codes that mimic a failing high-pressure fuel pump or a cracked pressure relief valve face. If a service shop swaps those high-value elements without physical component isolation testing, the underlying leak remains active—wasting thousands of dollars in parts-cannon diagnostic expenses. The ATC W936589019100 diagnostic cap group solves this blind spot completely, allowing line technicians to block off targeted injector lines to physically confirm exactly where pressure decay originates.
- Platform-Correct DD5 Common-Rail Matching – Engineered custom explicitly to interlock flat and seal the high-pressure fuel rail injector outlets of Detroit DD5 engines.
- Direct OEM Factory Special Tool Interchange – Built custom to match original equipment special tool dimensions flawlessly, serving as a premium replacement for part code **W936589019100** inside the Essential Tool Program.
- Absolute Leak-Free Pressure Sealing – Forged to handle the extreme operating pressures generated inside the fuel rail manifold loop safely without component deforming.
- Turnkey Multi-Cap Set of Six – Complete pack architecture allows technicians to cap off every injector port outlet simultaneously for zero-variable isolation diagnostics.
- Agile and Compact Service Mass – Packing a highly portable 0.80 lbs shipping weight, this dense, precision-machined steel cap set drops easily into mobile field repair kits or master drawer dividers.
Stop Swapping Common-Rail Parts on a Hunch. Enforce Real-Time Diagnostic Certainty.
The ATC W936589019100 High Pressure Fuel Rail Test Cap Set is a mandatory asset for high-volume fleet logistics depots, municipal transport repair garages, independent diesel machine lines, and certified overhaul cells. Eliminate diagnostic guesswork and maximize shop repair speeds with Apex tools.
Concentric Mechanical Block-Off. Isolate Leaking Injectors Predictably.
Order the DD5 Test Caps Set – $140.00Technical Specifications
| Technical Metric | Value / Fitment Reference Guidelines |
|---|---|
| Engine Platform Footprint | Detroit Diesel DD5 Medium-Duty Diesel Engine Architectures |
| Primary Tool Functionality | Fuel rail-to-injector outlet isolation, leak diagnostics, pressure retention sweeps |
| OEM Special Tool Cross Reference | Direct mechanical aftermarket replacement for factory tool number W936589019100 |

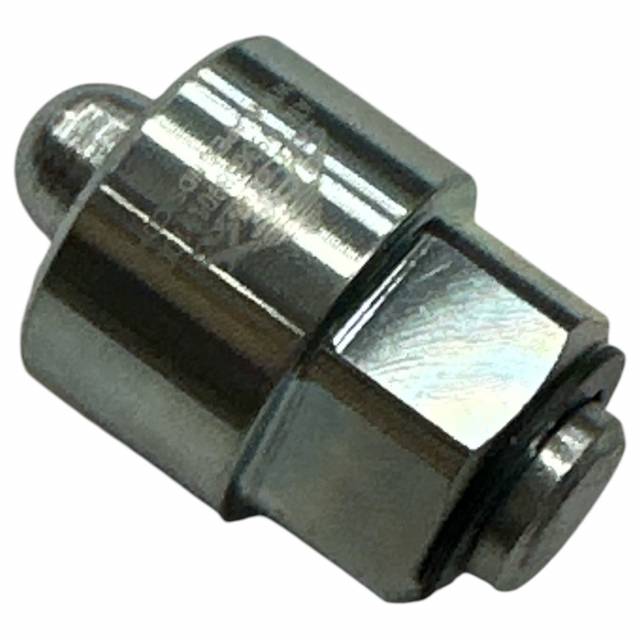

| Kit Packaging Profile | Set of 6 (Six) precision-machined heavy-duty high-pressure steel caps |
| Material Configuration | High-tensile, corrosion-resistant forged impact steel tooling alloy stock |
| Total Package Shipping Weight | 0.80 lbs (Ultra-lightweight, high-density field diagnostic module set) |
